Ididit 1120570010 1957 Chevy Tilt Steering Column, Plain

SAME DAY SHIPPING! Order within the next 14 hours 9 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
MFG. Part #:
1120570010
Output Shaft Type:
1" DD
Shifter Location:
Floor
Column Tilt:
Yes
Key Location:
Dash
Collapsible:
No
Ididit 1120570010 1957 Chevy Tilt Steering Column, Plain
Ididit 1120570010 1957 Chevy Tilt Steering Column, Plain

Click image to enlarge



Speeday Motors Logo
X
Ididit 1120570010 1957 Chevy Tilt Steering Column, Plain

Details

Reviews

Q & A

What's in the Box

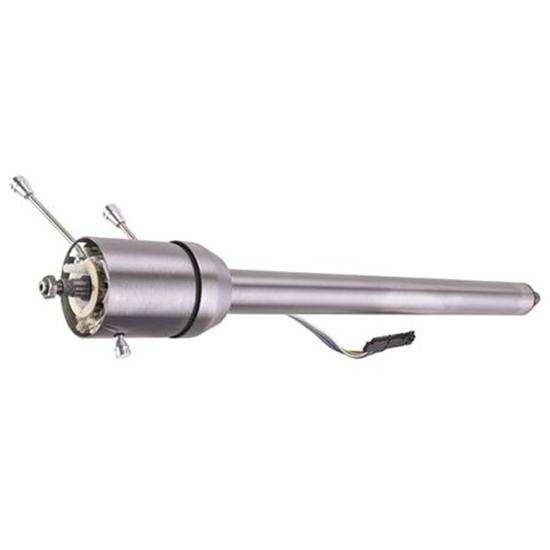

Make your 1957 Chevy more comfortable to drive by installing a new Ididit steering column. Ididit tilt steering columns with no shifter will move the steering wheel back 2" towards the driver. Columns use the common 1969 and up GM wheel adapters.

  • Self-Canceling Turn Signals
  • 4-Way Flashers
  • Billet Knobs and Handles
  • 3-7/8" Wiring Plug
  • 1" DD Lower Shaft
  • Plain steel finish

Wiring adapters for the stock harness are listed along with a floor mount. When using the original steering box, the input shaft will need to be cut and modified into a 3/4" DD.

446-1257 Instructions (PDF)

Item Details

No shifter

You may also be interested in:

Ididit 2401400010 1955-57 Column Floor Mount


Uses the two original holes in the floor to mount the bracket. The clamp secures the bracket to the column.

This floor mount is strongly recommended with all Tri-Five Installations.

American Autowire 35785 1957 Chevy O/E Wiring Harness


This wiring harness adapts the OEM 1957 harness to the aftermarket Ididit column. The Ididit column uses the flat ribbon plug common to the later GM columns and should be adaptable to work with the later GM columns and other aftermarket columns using the GM ribbon style flat plug in. As always, wiring layout and sequence will need to be verified for each circuit.

  • Stock o/e harness to an Ididit steering column
  • Chevrolet Passenger 1957
  • For 1969-74 GM column to stock dash

Note: Adapts horn, directionals, hazard flasher to stock dash



Ididit 1120570020 1957 Chevy Tilt Steering Column, Chrome


Make your 1957 Chevy more comfortable to drive by installing a new Ididit steering column. Ididit tilt steering columns with no shifter will move the steering wheel back 2" towards the driver. Columns use the common 1969 and up GM wheel adapters.

  • Self-Canceling Turn Signals
  • 4-Way Flashers
  • Billet Knobs and Handles
  • 3-7/8" Wiring Plug
  • 1" DD Lower Shaft
  • Chrome finish

Wiring adapters for the stock harness are listed along with a floor mount. When using the original steering box, the input shaft will need to be cut and modified into a 3/4" DD.

446-1257C Instructions (PDF)

Ididit 3000315249 Steering Coupler-3/4 In. Double D to 1 In. Double D


No-shift columns use 1" DD u-joints, while shift columns use 3/4"-36 spline u-joints. When using the original steering box, the input shaft will need to be cut and modified into a 3/4" DD.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



Steering Rag Joint, 3/4 Inch-30 Spline x 1 Inch DD


These rage joints make it easier to put an Ididit column in your '55-'57 Chevy car when using an aftermarket steering box.

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)
