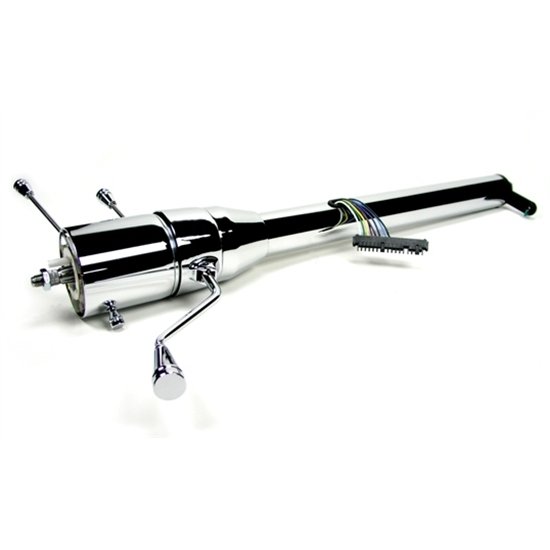

Ididit 1130330020 Tilt Wheel Steering Column w/ Shift, 33 Inch, Chrome

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

Watch the videos below for an overview of the installation process and how to properly synchronize your ididit Tilt Wheel Steering Column.



X

Details

Reviews

Q & A

What's in the Box

Original equipment steering columns are loaded with unsightly brackets, tabs and switches. These columns are much cleaner in appearance and eliminate the column-mounted key switch. These tilt with automatic transmission shift lever versions feature a 2-1/4" O.D. column tube.
  • Self-canceling turn signals
  • 4-way flashers
  • Horn circuit
  • Aluminum dress-up kit (billet turn signal knob and handle tilt knob and handle and 4-way flasher button)
  • Chrome plated steel finish

Measures 33" long from steering wheel base to end of the 1" double D shaft. Each has a standard GM 3-7/8" wire harness, 5-position tilt, and accept stock 1969-up GM steering wheels or our custom wheels with an adapter (sold separately).

446-1333C Instructions (PDF)

Notes

  1. Column Dimensions (Link)
