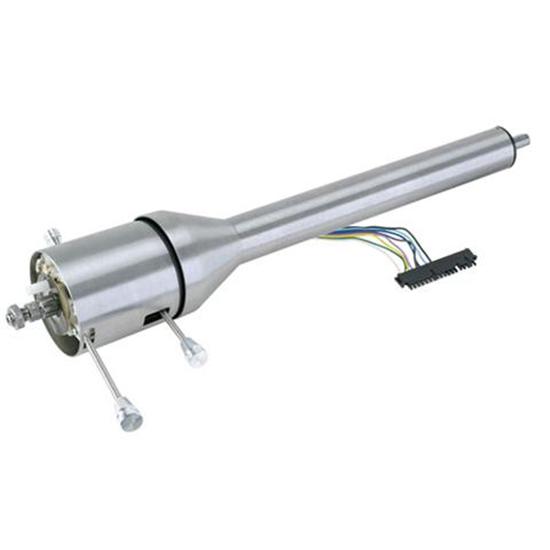

Ididit 1120300010 Tilt Wheel Steering Column, 30 Inch, Plain

Price:$379.99
1120300010 - Ididit 30" Tilt Only Column, 1" DD, Steel
Price:
$379.99
EA
In Stock
Item #:
4461230D
Ididit 1120300010 Tilt Wheel Steering Column, 30 Inch, Plain
Click image to enlarge Click image to enlarge
Watch the videos below for an overview of the installation process and how to properly synchronize your ididit Tilt Wheel Steering Column.




Original equipment steering columns are loaded with unsightly brackets, tabs and switches. These columns are much cleaner in appearance and eliminate the column-mounted key switch. These non-shift versions feature a 2" O.D. column tube.
  • Self-canceling turn signals
  • 4-way flashers
  • Horn circuit
  • Aluminum dress-up kit (billet turn signal knob and handle tilt knob and handle and 4-way flasher button)
  • Plain steel finish

Measures 30" long from steering wheel base to end of the 1" double D shaft. Each has a standard GM 3-7/8" wire harness, 5-position tilt, and accept stock 1969-up GM steering wheels or our custom wheels with an adapter (sold separately).

446-1230D Instructions (PDF)

  1. Column Dimensions (Link)
  2. Measures 7-5/8 from the end (steering wheel mount) to the end of the cone where the cone transitions into the 2 shaft.
