Icon Chevy 434 Forged Pistons, Flat Top, 6.0 Rod

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
4.00
Wrist Pin Diameter:
.9272
Piston Ring Style:
C
Connecting Rod Length:
6.000"
Piston Weight:
422
Wrist Pin Weight:
132
Piston Style:
Flat Top w/ 2 valve reliefs
Piston Material:
Forged Aluminum
Garage Sale:
No

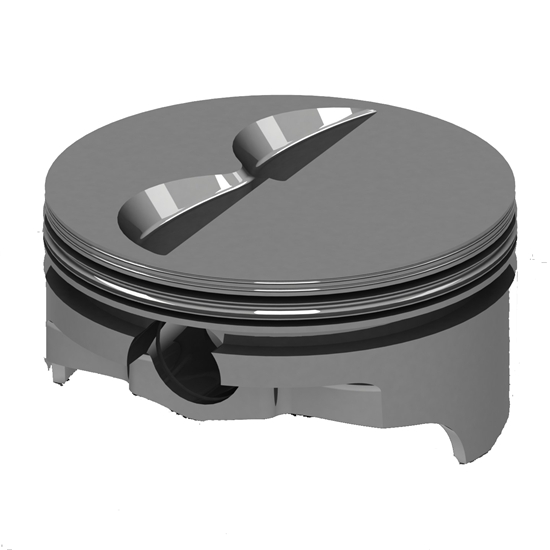

Icon Chevy 434 Forged Pistons, Flat Top, 6.0 Rod
Icon Chevy 434 Forged Pistons, Flat Top, 6.0 Rod

Click image to enlarge

Speeday Motors Logo
X
Icon Chevy 434 Forged Pistons, Flat Top, 6.0 Rod

Details

Reviews

Q & A

What's in the Box

Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.

  • High ductility 2618 alloy
  • Dual forced pin oiling on most applications
  • Lateral gas porting on higher compression ratios
  • Fully machined with deep valve pockets
  • Second land accumulator grooves
  • Top land mini groove technology
  • Diamond finished skirts
  • Triple wound spiral locks

For Chevy 434 c.i. (4.125" bore x 4.00" stroke). Use Style C rings (1/16", 1/16", 3/16").

Ring Style Chart (GIF)

474-849 Instructions (PDF)

Specs

  • Comp Height -  1.015
  • Pin Diameter -  0.9272

Item Details

C/R 58cc=13.4, 64cc=12.4, 69cc=11.7
Piston/Pin Weight: 554 g
Rod Length: 6"
