Icon Chevy 421 Forged Pistons, Flat Top, 6.0 Rod

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Connecting Rod Length:
6.000"
Piston Ring Style:
E
Piston Material:
Forged Aluminum
Piston Style:
Flat Top w/ 2 valve reliefs
Garage Sale:
No
Piston Diameter:
-
Stroke:
3.875
Wrist Pin Diameter:
.927
Piston Weight:
427
Wrist Pin Weight:
102

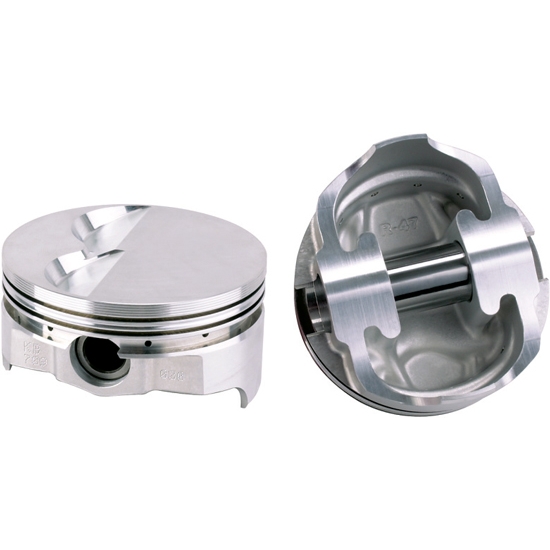

Icon Chevy 421 Forged Pistons, Flat Top, 6.0 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.

For Chevy 421 c.i. (4.125" bore x 3.875" stroke). Use Style E rings (1.5mm, 1.5mm, 3.0mm).

  • High ductility 2618 alloy
  • Dual forced pin oiling on most applications
  • Lateral gas porting on higher compression ratios
  • Fully machined with deep valve pockets
  • Second land accumulator grooves
  • Top land mini groove technology
  • Diamond finished skirts
  • Triple wound spiral locks

Ring Style Chart (GIF)

474-966 Instructions (PDF)

Item Details

Piston Weight: 427 g. Rod Length: 6.0"
Bore & Stroke: 4.125 x 3.875
Ring Style: E

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
