Icon Chevy 350 Forged Pistons, Flat Top, 6.0 Rod

SAME DAY SHIPPING! Order within the next 13 hours 45 minutes and receive same day shipping

Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Ring Style:
C
Connecting Rod Length:
6.000"
Piston Weight:
439
Wrist Pin Weight:
132
Piston Style:
Flat Top w/ 2 valve reliefs
Piston Material:
Forged Aluminum
Garage Sale:
No
Compression 58cc =:
11.2 : 1
Compression 64cc =:
-
Compression 76cc =:
9.1 : 1

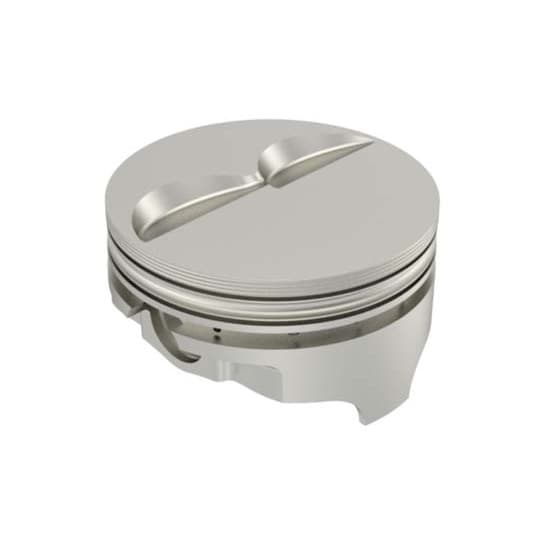

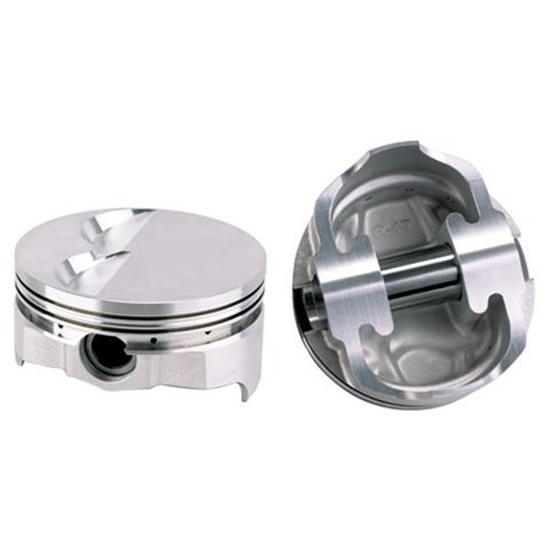

Icon Chevy 350 Forged Pistons, Flat Top, 6.0 Rod
Icon Chevy 350 Forged Pistons, Flat Top, 6.0 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.

  • High ductility 2618 alloy
  • Dual forced pin oiling on most applications
  • Lateral gas porting on higher compression ratios
  • Fully machined with deep valve pockets
  • Second land accumulator grooves
  • Top land mini groove technology
  • Diamond finished skirts
  • Triple wound spiral locks

For Chevy 350 c.i. (4.000" bore x 3.48" stroke). Use Style C rings (1/16", 1/16", 3/16").

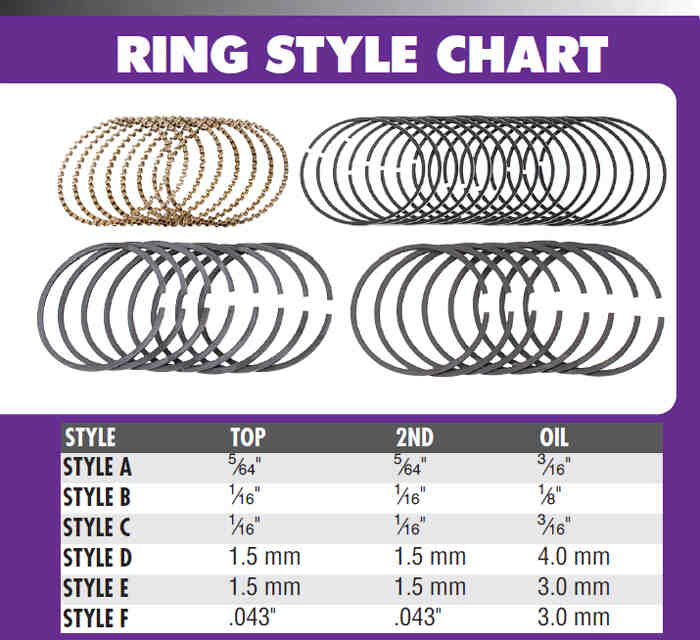

Ring Style Chart (GIF)

474-702 Instructions (PDF)

Specs

  • Comp Height 5.7" Rod -  1.565
  • Comp Height 6.0" Rod -  1.265
  • Pin Diameter -  0.9272

Item Details

C/R 58cc=11.2, 64cc=10.4, 76cc=9.1
Piston/Pin Weight: 571 g
Rod Length: 6"
