Icon Chevy 350 Forged Pistons, Flat Top, 5.7 Rod

SAME DAY SHIPPING! Order within the next 1 hour 33 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Piston Ring Style:
C
Connecting Rod Length:
5.700"
Piston Material:
Forged Aluminum
Piston Style:
Flat Top w/ 2 valve reliefs
Compression 58cc =:
11.2 : 1
Compression 64cc =:
10.4 : 1
Compression 76cc =:
9.1 : 1
Garage Sale:
No
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Weight:
499
Wrist Pin Weight:
135

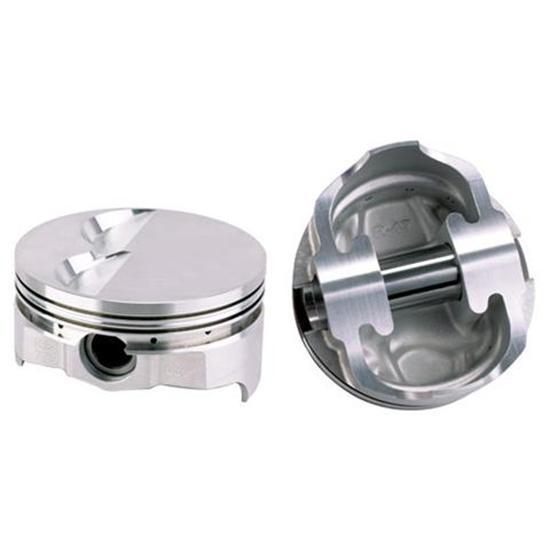

Icon Chevy 350 Forged Pistons, Flat Top, 5.7 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.

  • High ductility 2618 alloy
  • Dual forced pin oiling on most applications
  • Lateral gas porting on higher compression ratios
  • Fully machined with deep valve pockets
  • Second land accumulator grooves
  • Top land mini groove technology
  • Diamond finished skirts
  • Triple wound spiral locks

For Chevy 350 c.i. (4.000" bore x 3.48" stroke). Use Style C rings (1/16", 1/16", 3/16").

Ring Style Chart (GIF)

474-717 Instructions (PDF)

Item Details

C/R 58cc=11.2, 64cc=10.4, 76cc=9.1
Piston/Pin Weight: 634 g
Rod Length: 5.7"

Specs

  • Comp Height 5.7" Rod -  1.565
  • Comp Height 6.0" Rod -  1.265
  • Pin Diameter -  0.9272

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

do these come in a .60 bore for 350 chevy and what is the weight on the pistons

mount wolf pa.
January 10, 2012

do these come in a .60 bore for 350 chevy and what is the weight on the pistons

Answers

January 12, 2012
Jason
Yes, we offer these in .060 oversized. The weight of piston is 499 grams and pin is 135 grams
