Inline Vibration Dampener

SAME DAY SHIPPING! Order within the next 4 hours 40 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
End #1:
3/4 inch DD
Overall Length:
4.00
Outside Diameter:
1.75
Mounted Length:
3.00
Inline Vibration Dampener
Inline Vibration Dampener
Inline Vibration Dampener

Click image to enlarge

Details

Reviews (3)

Q & A (4)

What's in the Box

Info

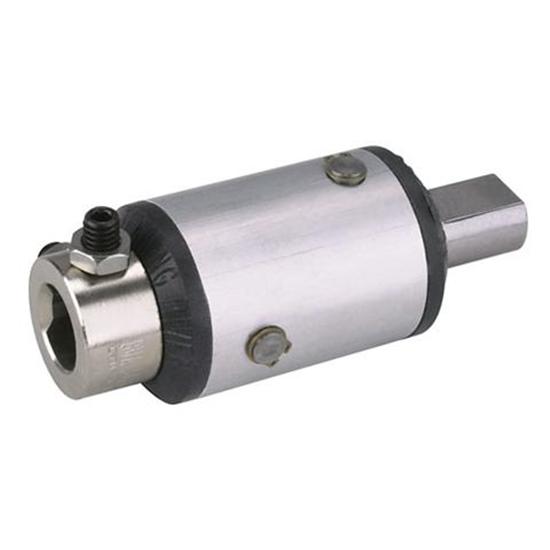

Here's the solution to painful, tiring impulses that the roadway transmits through your steering system. Each end accepts a 3⁄4" DD shaft to allow inline installation between steering column and steering box.

A steering shaft support heim is recommended near the dampener for the most stable installation. Bright, nickel-plated steel construction. 3⁄4" DD female on one end, 3⁄4" DD male on the other.

Approximately 1-3/4" O.D. and 4" long end-to-end. Adds approximately 3-1/2" to the length of the shaft.

Spline Size (Link)

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

auggie
Verified Purchaser
Munford, TN, USA

Inline Vibration Dampener

January 28, 2015
it is a great looking product and fits really good.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rainmaker
Verified Purchaser
Artesia, NM

Great Product worked perfectly

November 06, 2010
Work great for my T bucket
Pros:
  • Inexpensive but great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Coach
Temperance,Michigan

This is a great addition to my streetrod

June 13, 2010
This part makes a big differance in the ride of my streetrod
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Do you carry an inline vibration dampener with 3/4" DD & 3/4" 36 spline? If not...do you know where we can find one. Thank you for your time.

AceCustomFab
Peoria, AZ, USA
February 23, 2015

Do you carry an inline vibration dampener with 3/4" DD & 3/4" 36 spline? If not...do you know where we can find one. Thank you for your time.

Answers

February 24, 2015
EricM
Sorry we do not offer an inline dampener with 3/4" x 36 spline and do not have a good suggestion of where to find one. You may want to contact Sweet Manufacturing to see if they could custom build such an item.
1 answers

I have massive engine vibrations being transmitted to the cab, ... Do you think this would help cut that down? Vehicle is a 1993 Chevy 2wd with a 4bt Cummins, mounted with GM factory engine mounts. Most all of the vibration in the cab and interior seems to be transmitted thru the steer shaft and column.

86k30
January 08, 2015

I have massive engine vibrations being transmitted to the cab, ... Do you think this would help cut that down? Vehicle is a 1993 Chevy 2wd with a 4bt Cummins, mounted with GM factory engine mounts. Most all of the vibration in the cab and interior seems to be transmitted thru the steer shaft and column.

Answers

January 08, 2015
EricM
Massive engine vibrations in the cab are typically due to worn engine mounts, the engine/transmission contacting the body or some other part of the vehicle where it shouldn't be, a rough idling engine, incorrect flywheel or damper causing the engine to be out of balance, etc. You would be best off determining the source of all the vibration and fixing that problem. This may help slightly with some engine vibration if it is indeed being transferred through the steering shaft but I highly doubt it will solve your problem.
1 answers

Does it matter which way it is installed on the shaft, ie male up or down?

Teter
Lykens, Pa
December 05, 2013

Does it matter which way it is installed on the shaft, ie male up or down?

Answers

December 06, 2013
EricM
No, this dampener can be installed either direction.
1 answers

Will this device diminish the direct feel of my rack and pinion steering? How long is it and what is the diameter?

MANGUSTA
DETROIT MI
November 17, 2011

Will this device diminish the direct feel of my rack and pinion steering? How long is it and what is the diameter?

Answers

November 21, 2011
John
Part number 91032253 THIS STEERING VIBRATION DAMPENER IS APP 1-3/4"O.D. AND IT IS 4"LONG END-TO-END. (IT ADDS APP. 3-1/2" TO THE LENGTH OF THE SHAFT) THIS DAMPER IS 3/4" DD FEMALE TO 3/4" DD MALE This will help eliminate the direct steering gear or rack to steering wheel feel. Something similar to an OEM rag joint with the rubber disc helping absorb vibration and solid metal to metal feel.
Page 1 of 1
