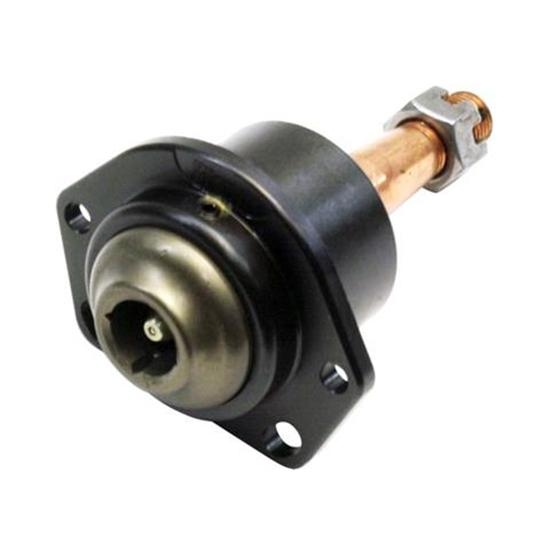

Howe Racing 22302 GM K5208 Style Upper Ball Joint w/ Aluminum Cap

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Degree of Taper:
10 degree
Location Type:
Upper
Ball Joint Type:
Bolt-in
MFG. Part #:
22302
Hardware Included:
Yes
Overall Height:
4.41
Mounting Thread Length:
0.85
Shank Length:
2.23
Base Length:
3.00
Base Width:
2.38
Taper Large End:
0.65
Taper Small End:
0.53
Notes
Includes castle nut, cotter pin, and flat washer.
Howe Racing 22302 GM K5208 Style Upper Ball Joint w/ Aluminum Cap

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Howe Precision Ball Joints offer the precision of a spherical bearing with the misalignment range of a ball joint. Their rugged steel housings will withstand impacts that can destroy other ball joints. Plus, even if you manage to damage the joint, they are fully rebuildable. The alloy steel ball studs are process coated for low friction and long wear. You will feel the difference in smooth travel and easy steering effort.

Upper 917-22302

  • Bolt-in (4-bolt) style and cross reference with MOOG #K5208.
Fits
  • 1970-81 Camaro/Firebird
  • 1973-81 Chevelle A-body
  • 1975-79 Nova
  • 1978-88 Monte Carlo G-body
  • 1971-96 Impala/Caprice

Precision Ball Joint Illustration (GIF)

See Application tab for corresponding vehicle models.

Item Details

Moog# K5208
73-81 A-Body, 70-81 F-Body, 78-88 G-Body,75-79 X-Body, 71-96 B-Body, 82-02 S-10

Application

  • 1973-87 Regal
  • 1970-81 Camaro/Firebird
  • 1973-88 Monte Carlo
  • 1973-88 Chevelle
  • 1978-83 Malibu
  • 1971-76 Impala/Caprice
  • 1977-94 Caprice/Impala
  • 1975-79 Nova
  • 1994-96 Impala SS
  • 1973-88 Cutlass
  • 1973-88 Grand Prix
  • 1973-82 Lemans
  • 1982-2002 Chevrolet S-10/Blazer (2WD)
  • 1982-2002 GMC Sonoma/Jimmy (2WD)
