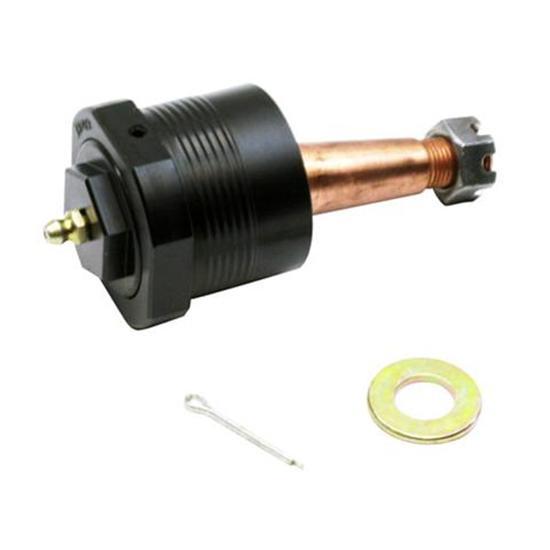

Howe Racing 22320S 1968-89 Chrysler K772 Style Upper Ball Joint Steel

SAME DAY SHIPPING! Order within the next 3 hours 46 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Degree of Taper:
7 degree
Location Type:
Upper
Ball Joint Type:
Screw-in
MFG. Part #:
22320S
Hardware Included:
Yes
Overall Height:
4.30
Mounting Thread Length:
0.72
Shank Length:
1.50
Taper Large End:
0.73
Taper Small End:
0.58
Notes
Includes castle nut and washer.
Howe Racing 22320S 1968-89 Chrysler K772 Style Upper Ball Joint Steel

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Howe Precision Ball Joints offer the precision of a spherical bearing with the misalignment range of a ball joint. Their rugged steel housings will withstand impacts that can destroy other ball joints. Plus, even if you manage to damage the joint, they are fully rebuildable. The alloy steel ball studs are process coated for low friction and long wear. You will feel the difference in smooth travel and easy steering effort.

IMCA Approved. Same as Moog # K772.

Precision Ball Joint Illustration

Item Details

1968-89 Chrysler

Application

Fits:

  • Howe, Dirtworks upper
  • Most aftermarket tubular or strut type lower arms (Speedway, AFCO, Jet, Dirtworks, etc.).
  • Upper and lower tapers of Mustang II/Pinto spindle
  • All steel parts makes it IMCA Approved as well.
  • Chrysler
    • 300 1962-71
    • Cordoba 1975-83
    • Fifth Avenue 1983-89
    • Imperial 1981-83
    • Lebaron 1977-81
    • New Yorker 1963-82
    • Newport 1961-81
    • Windsor 1958-61
  • Dodge
    • 330 1963-64
    • 440 1963-64
    • 880 1963-64
    • A100 1964
    • Aspen 1976-80
    • Challenger 1970-74
    • Charger 1966-78

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Are these ball joints a 7* taper? I need lower and upper 7* taper screw in for a mustang/pinto spindle.

RTrue
Tacoma WA
September 14, 2013

Are these ball joints a 7* taper? I need lower and upper 7* taper screw in for a mustang/pinto spindle.

Answers

September 16, 2013
Jason
Yes, How upper ball joint part #91722320S is for a 7 degree taper. For the lower ball joint we offer part #91722412S
Page 1 of 1

You may also be interested in:

Howe Racing 22320 68-89 Chrysler K772 Style Upper Ball Joint Alum Cap
(Part #91722320)


Howe Precision Ball Joints offer the precision of a spherical bearing with the misalignment range of a ball joint. Their rugged steel housings will withstand impacts that can destroy other ball joints. Plus, even if you manage to damage the joint, they are fully rebuildable. The alloy steel ball studs are process coated for low friction and long wear. You will feel the difference in smooth travel and easy steering effort.

NOT IMCA Approved.

Precision Ball Joint Illustration

Item Details

1968-89 Chrysler
Howe Racing 22330 Repl Ball Joint Stud for K772 and K6024 Style
(Part #91722330)


Replacement ball studs for your rebuildable Howe Precision Ball Joints. These alloy steel ball studs are process coated for low friction and long wear. You can feel the difference in smooth travel and easy steering effort.

Howes rugged Precision Ball Joint steel housings will withstand impacts that can destroy a standard automotive ball joint; typically only the ball stud will need replacement. These standard ball studs are dimensionally the same as OEM, and different length studs are available to allow easy geometry changes.

  • GM F-Body - 1969-81 Camaro/Firebird
  • GM X-Body - 1968-79 Nova/Apollo/Ventura, etc.
  • GM B-Body - 1971-96 Impala/Caprice
  • GM A-Body - 1964-81 Chevelle/Malibu/El Camino
  • GM G-Body - 1978-88 Monte Carlo/Regal/Cutlass

For Howe Precision Ball Joints ONLY.

Item Details

1963-71 Chevy/GMC Truck
1968-89 Chrysler for Steel and
Aluminum (917-22412S)
Speedway 1968-89 Chrysler-Type Upper K772 Style Ball Joint
(Part #91034323)


These Chrysler-type screw in ball joints fit a variety of race car and street car applications.See Application tab for complete list.

Same as Moog K772.

Item Details

Moog # K772
Howe Racing K772 and K6024 Repl Ball Joint Stud, .2 Inch Extended
(Part #91722332)


Replacement ball studs for your rebuildable Howe Precision Ball Joints. These alloy steel ball studs are process coated for low friction and long wear. You can feel the difference in smooth travel and easy steering effort.

Howes rugged Precision Ball Joint steel housings will withstand impacts that can destroy a standard automotive ball joint; typically only the ball stud will need replacement. These standard ball studs are dimensionally the same as OEM, and different length studs are available to allow easy geometry changes.

  • .2" extended
  • Replacement stud only
  • For K772 ball joint
  • Stock Application: 1965-89 Chrysler, Dodge, Plymouth
  • Racing Application: All Asphalt Late Models, Dirtworks, Troyer Ford steering uppers. Also fits Pinto upper taper.
  • Ball Size: 1.437
  • 1/2-20 Thread
  • Dimension "X" - 1.046"
  • Dimension "L" - 3.54"

For Howe Precision Ball Joints ONLY.

Note: Most NASCAR and IMCA divisions require ball joints with a steel cap.

Item Details

Dimension "X" - 1.046"
Dimension "L" - 3.54"
Howe Racing K772 and K6024 Repl Ball Joint Stud, .5 Inch Extended
(Part #91722335)


Replacement ball studs for your rebuildable Howe Precision Ball Joints. These alloy steel ball studs are process coated for low friction and long wear. You can feel the difference in smooth travel and easy steering effort.

Howes rugged Precision Ball Joint steel housings will withstand impacts that can destroy a standard automotive ball joint; typically only the ball stud will need replacement. These standard ball studs are dimensionally the same as OEM, and different length studs are available to allow easy geometry changes.

  • .5" extended
  • Replacement stud only
  • For K772 ball joint
  • Stock Application: 1965-89 Chrysler, Dodge, Plymouth
  • Racing Application: All Asphalt Late Models, Dirtworks, Troyer Ford steering uppers. Also fits Pinto upper taper.
  • Ball Size: 1.437
  • 1/2-20 Thread
  • Dimension "X" - 1.346"
  • Dimension "L" - 3.84"

For Howe Precision Ball Joints ONLY.

Note: Most NASCAR and IMCA divisions require ball joints with a steel cap.

Item Details

Dimension "X" - 1.346"
Dimension "L" - 3.84"
Howe Racing K772 and K6024 Repl Ball Joint Stud, 1 Inch Extended
(Part #917223310)


Replacement ball studs for your rebuildable Howe Precision Ball Joints. These alloy steel ball studs are process coated for low friction and long wear. You can feel the difference in smooth travel and easy steering effort.

Howes rugged Precision Ball Joint steel housings will withstand impacts that can destroy a standard automotive ball joint; typically only the ball stud will need replacement. These standard ball studs are dimensionally the same as OEM, and different length studs are available to allow easy geometry changes.

  • 1" extended
  • Replacement stud only
  • For K772 ball joint
  • Stock Application: 1965-89 Chrysler, Dodge, Plymouth
  • Racing Application: All Asphalt Late Models, Dirtworks, Troyer Ford steering uppers. Also fits Pinto upper taper.
  • Ball Size: 1.437
  • 1/2-20 Thread
  • Dimension "X" - 1.846"
  • Dimension "L" - 4.34"

For Howe Precision Ball Joints ONLY.

Note: Most NASCAR and IMCA divisions require ball joints with a steel cap.

Item Details

Dimension "X" - 1.846"
Dimension "L" - 4.34"
Howe Racing K772 and K6024 Repl Ball Joint Stud, .75 Inch Extended
(Part #917223375)


Replacement ball studs for your rebuildable Howe Precision Ball Joints. These alloy steel ball studs are process coated for low friction and long wear. You can feel the difference in smooth travel and easy steering effort.

Howes rugged Precision Ball Joint steel housings will withstand impacts that can destroy a standard automotive ball joint; typically only the ball stud will need replacement. These standard ball studs are dimensionally the same as OEM, and different length studs are available to allow easy geometry changes.

  • .75" extended
  • Replacement stud only
  • For K772 ball joint
  • Stock Application: 1965-89 Chrysler, Dodge, Plymouth
  • Racing Application: All Asphalt Late Models, Dirtworks, Troyer Ford steering uppers. Also fits Pinto upper taper.
  • Ball Size: 1.437
  • 1/2-20 Thread
  • Dimension "X" - 1.596"
  • Dimension "L" - 4.09"

For Howe Precision Ball Joints ONLY.

Note: Most NASCAR and IMCA divisions require ball joints with a steel cap.

Item Details

Dimension "X" - 1.596"
Dimension "L" - 4.09"
Howe 22329S K772 Ball Joint Housing with Steel Cap
(Part #91722329S)
                        For a variety of racing applications, Howe Ball   Joints are a great choice. This patented design is  100%  owner rebuildable and is exclusive to Howe Racing.  This is a replacement K772 housing only with steel cap.
  • K772 replacement housing only
  • Steel cap
  • Studs sold separately
Ball Joint Boot
(Part #91722399)
                        These protective ball joint boots fit both upper and lower joints.

Item Details

Fits Upper or Lower
