Hollow Steering Shaft

Specs
Material Type:
Steel
Overall Length:
-
Sold in Quantity:
Each
Finish:
Natural
Overall Diameter:
.75
Inside Diameter:
.50
Garage Sale:
No

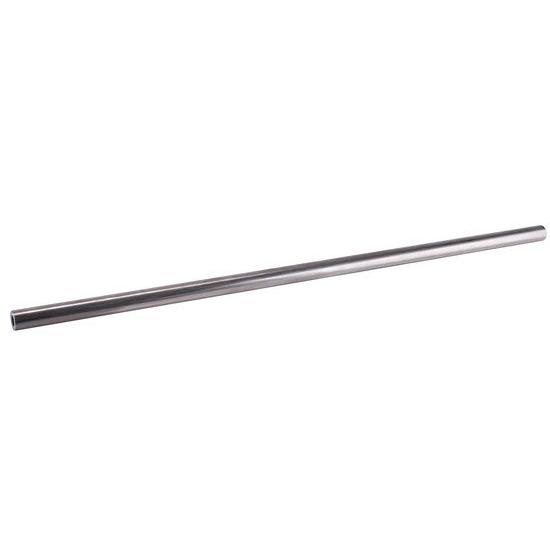

Hollow Steering Shaft
Hollow Steering Shaft

Click image to enlarge



Speeday Motors Logo
X
Hollow Steering Shaft

Details

Reviews

Q & A

What's in the Box

This steering shaft is hollow and is cut-to-fit. This steering shaft entails:

  •   3/4" DOM
  • .120" wall hollow steering shaft
  • Available in 24", 36", 48", 60" and 72" length
  • Steel Steering shaft



Item Details

Steel Shaft
