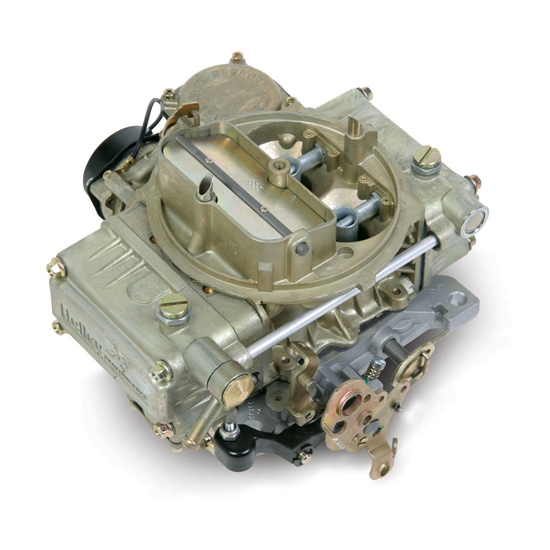

Holley 0-8007 4160 Street 390 CFM 4 Barrel Carburetor
Click image to enlarge
Q & A
What's in the Box
The Holley Model 4160 390 CFM four barrel carb features vacuum secondaries, side hung float bowls, electric choke (12 volt) and Ford auto-trans kickdown provision, which make for an easy-to-tune street driven 4 barrel carb for your Flathead, six cylinder or other small V-8 application. For use on a wide variety of vehicle weights, gearing and transmissions to allow smooth opening of secondaries
- Electric choke for easy warm up
- Single inlet square fuel bowls
- Power valve blow-out protection
- 1 timed (spark) port, 1 full vacuum, and 1 PCV port
- Ford A/T kickdown, does not work with A.O.D. transmissions
- 100% wet-flow tested and calibrated for street drivability
