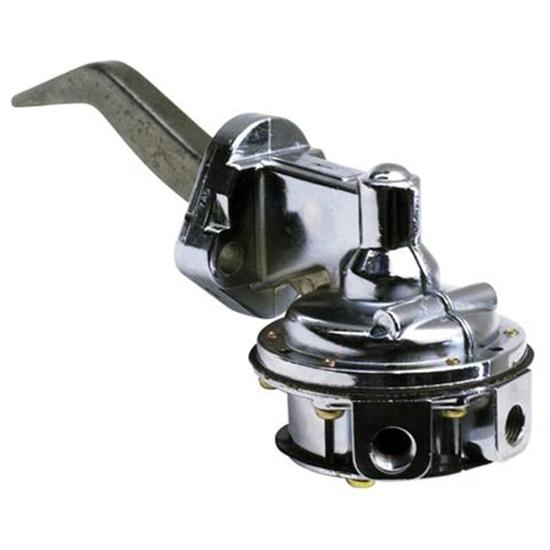

Holley 12-833 1962-1974 Small Block Ford Street Fuel Pump


Share by Email


Click image to enlarge




Q & A

What's in the Box

These all-new (not rebuilt) mechanical fuel pumps from Holley have a 7-1/2 psi shut-off pressure and deliver 80 GPH. The adjustable lower housing permits fuel ports (1/4" NPT) to be rotated for best fuel line access. Pump fittings not included (sold separately). These pumps have a flash chrome finsih that is not show quality.

  • High Output Fuel Flow
  • Flows 80 GPH Free Flow
  • Shutoff Pressure Preset at 7.5 PSI
  • Fuel Pressure Regulator is Not Required
  • Heavy Duty Construction For Continuous High RPM Operation
  • Fuel Body Casting Can Be Rotated to Accommodate Various Plumbing Situations
  • Inlet & Outlet Tapped For 1/4" NPT

Holley Pump Tech Info (PDF)

Item Details

221, 260, 289, 302, & 351W
