Hitachi Enforcer Chevy Mini Starter, 1.0 kW

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Garage Sale:
No
Overall Height:
4.75
Overall Width:
3.00
Overall Length:
7.00
Weight:
7.50

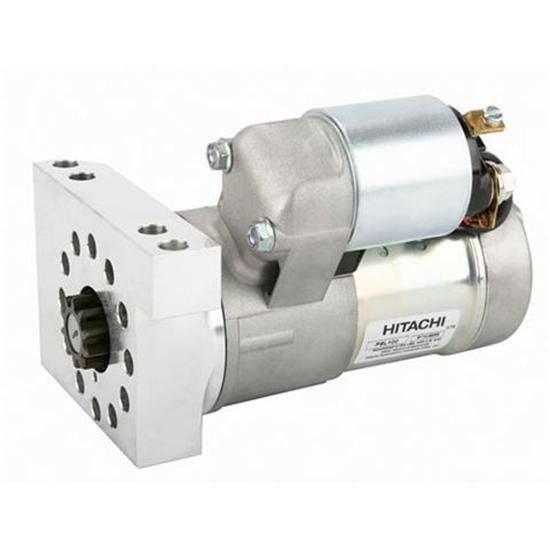

Hitachi Enforcer Chevy Mini Starter, 1.0 kW

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

There is no starter smaller and lighter than this 100% brand new Hitachi starter. This starter can be rotated 360° and its compact size allows it to fit where no other can. For 153 or 168 tooth flywheels and straight bolt patterns.

  • Up to 10:1 compression
  • 1.0 kw motor
  • 6:1 gear reduction
  • 7-1/2" lbs.
  • Includes ARP bolts and shims

Specs

  • 7" long (not including the drive)
  • 4-3/4" tall (including solenoid)
  • 3" diameter motor

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

ModelAMark123
Verified Purchaser
Wisconsin, USA

Compact is what I needed, and this worke

August 20, 2013
Good fit,shinny and, no problems. I just put it in and it works. Ask me again in three years, and you might get some useful information on reliability.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

JC
Verified Purchaser
Denver, CO

Hitachi Enforcer Chevy Mini Starter, 1.0

September 07, 2012
I had one of these already as it was installed when i bought the car. I had the car for 5 months and the Hitatchi starter died (was extremely hot- guessing heat wash, which is what these are supposed to not have issues with). I replaced it with another and so far so good.
Pros:
  • Easy To Install
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

cornfedbill
Verified Purchaser
Brighton, Michigan

Hitachi Mini Starter, S/B Chevy

December 19, 2010
This is an excellent starter. It is very light and compact. It resolved a problem packaging big headers and a 168 tooth flywheel on my '55 Belair where a stock GM starter would not fit.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

The 7" measurement does or does not include mounting plate? I do see it says not including drive, and the drive is sticking out however Im looking for overall full mounting plate to back measurement

Bryne
Hesperia CA
July 06, 2015

The 7" measurement does or does not include mounting plate? I do see it says not including drive, and the drive is sticking out however Im looking for overall full mounting plate to back measurement

Answers

July 07, 2015
Eric
Expert
The 7" measurement is from the back of the pinion gear to the front of the starter motor. The pinion gear protrudes out 7/16" from the mounting block so the starter is 6 9/16" from the back of the mounting block to the front of the starter motor.
Page 1 of 1
