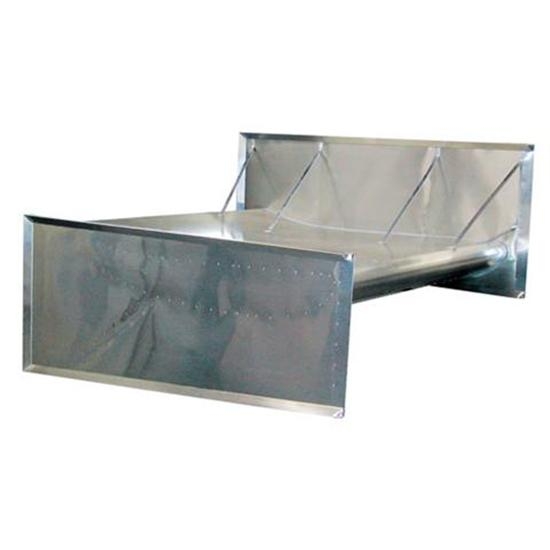

HRP 5x5 Flat Top Wing Kit w/ Countersunk Rivets and 1-Degree Slant

Specs
Material Type:
Aluminum
Overall Height:
24.00
Overall Width:
30.00
Overall Length:
72.00
Sold in Quantity:
Each
Overall Thickness:
.016
Finish:
Natural
Overall Diameter:
1.00
Outside Diameter:
.016
MFG. Part #:
FLT0510-1-SLT-SKIT
Garage Sale:
No
HRP 5x5 Flat Top Wing Kit w/ Countersunk Rivets and 1-Degree Slant
HRP 5x5 Flat Top Wing Kit w/ Countersunk Rivets and 1-Degree Slant

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Hepfner Racing Products is a leader in the design and manufacturing of sprint car wings. CNC punched and formed, each wing is identical and all internal components are formed and lightened. Top wing kit features countersunk rivets for increased airflow and added strength.

Complete top wing kit includes internal runner, chromoly front post, rivets and complete instructions. All holes are drilled. Assembly takes anywhere from 1-2 hours.

  • Top wing for winged sprint cars
  • Flush rivets for better airflow
  • Pre-drilled holes for easy assembly
  • Approved for use with WoO, IRA, Knoxville, All Stars, ASCS and others
  • Complete package includes internal runners, chromoly front posts, rivets and braces

HRP Top Wing Assembly Instructions (PDF)

Application

  • 5' x 5' top wing
  • Tall sideboard measures 72" x 30"
  • Lower sideboard is 72" long and 30" tall at the rear, 24" tall in front
  • Posts are 1" O.D. and 12" tall
  • T-roller bearing posts
  • 0.016" aluminum belly
  • 0.016" aluminum sideboards
  • Has 2-1/2" rear dish for maximum downforce on rear tires

Specs

  • 5' x 5' top wing
  • Tall sideboard measures 72" x 30"
  • Lower sideboard is 72" long and 30" tall at the rear, 24" tall in front
  • Posts are 1" O.D. and 12" tall
  • T-roller bearing posts
  • 0.016" aluminum belly
  • 0.016" aluminum sideboards
  • Has 2-1/2" rear dish for maximum downforce on rear tires

Item Details

w/ Super Boards
