HEI Distributor For Roller Cams, 302 Ford

SAME DAY SHIPPING! Order within the next 15 hours 12 minutes and receive same day shipping

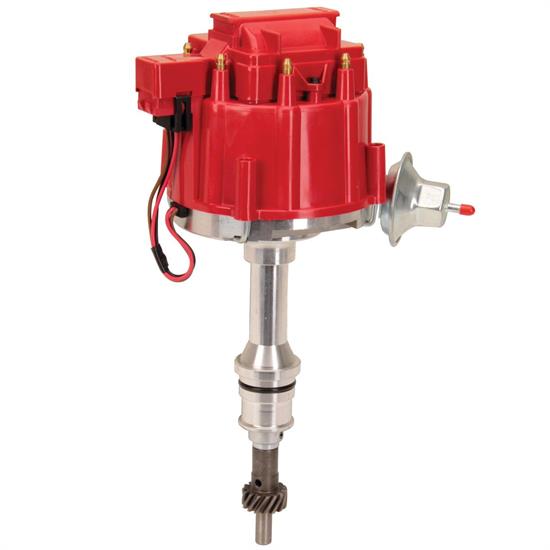

HEI Distributor For Roller Cams, 302 Ford

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • HEI for 302 Ford
  • High performance ignition module
  • Brass terminals in cap
  • 50,000V coil
  • Hardened gear
  • Mechanical advance
  • High perf. rotor
  • Coil cover
  • Vacuum advance
  • Incredible Price
  • The drive-gear on this distributor works OK with cast "stock"OEM roller camshafts
NOTE: Will NOT work with aftermarket billet roller cams.

Customer Reviews

Rated 4.3 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

bear09
Verified Purchaser
Broken Arrow, OK, USA
Product Rating

good unit would not work

August 18, 2014
this unit would not clear my Shelby American 289 hiriser manifold I have owned this manifold for 40 yrs so I could not replace it
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

1954ford
Tennessee, USA
Product Rating

Great product.

December 01, 2012
I bought one of those cheap blue caps ford hei,s off ebay.The shaft seized on it after about 10k miles. The quality of these is so much better.I would buy again and Speedway is Awesome!!!
Pros:
  • Quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BOB64
Verified Purchaser
Product Rating

hot fire, easy to install and wire.

October 03, 2014
excellent product, but too large to use with stock injection rail. must be modified.
Cons:
  • must be modified to use with ford inj rail.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

brackets
Verified Purchaser
Product Rating

distributor

April 03, 2015
works , runs starts fine - only thing is the hook-up for wires is bass askers , and it fits in area tight because of size --- not to say it looks like a chevy
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91012351

Product Q&A

8 questions : 11 answers

1 answers

Measurements of distributor What is the height for the cap above the block? What is the diameter of the cap? Is it taller or bigger around than my stock 89 mustang 302 distributor?

BobMac
Orlando, FL
January 01, 2015

Measurements of distributor What is the height for the cap above the block? What is the diameter of the cap? Is it taller or bigger around than my stock 89 mustang 302 distributor?

Answers

January 02, 2015
EricM
This distributor is 9 3/4" tall from the intake surface to the top of the cap. The cap is about 7" diameter and should be similar in diameter to the Ford Duraspark distributor cap.
1 answers

Will this work on my 1999 302 explorer engine. Converting from EFI to Carb. The engine is stock with a roller cam.

prairiepegger
June 17, 2014

Will this work on my 1999 302 explorer engine. Converting from EFI to Carb. The engine is stock with a roller cam.

Answers

June 18, 2014
EricM
Yes this will work in your engine. You may also need a longer oil pump drive shaft which is part number 91550110.
2 answers

Will this distributor work with MSD 6A

50MGB
Olive Branch, MS, USA
March 27, 2014

Will this distributor work with MSD 6A

Answers

August 19, 2014
bear09
no
March 27, 2014
EricM
You could use this with an MSD 6A ignition box but it is not required. If you do use the MSD box then you will remove the module and eliminate it in order to wire in your 6A box.
2 answers

Is this a long shaft or short

Young
March 08, 2014

Is this a long shaft or short

Answers

May 20, 2014
1950F3Ford
Will this fit my 1991 Ford 302 in a Crown Vic with a Ford Racing E303 roller cam?
March 10, 2014
EricM
This is a short shaft distributor. It measures 5" from the intake surface to the end of the oil pump drive.
2 answers

Will this distributor work with the Ford Motorsports M6250-B303 roller camshaft (not sure how to tell if it's a billet or cast camshaft)? Carburated Ford 5.0L in a 1928 Ford Sedan

Anothercarguy
Canada
January 13, 2014

Will this distributor work with the Ford Motorsports M6250-B303 roller camshaft (not sure how to tell if it's a billet or cast camshaft)? Carburated Ford 5.0L in a 1928 Ford Sedan

Answers

August 19, 2014
bear09
yes if its from ford
January 13, 2014
EricM
The information from Ford Motorsports doesn't indicate that the cam requires a bronze distributor gear so you should be fine using this distributor with that camshaft.
1 answers

will this one work on my 1987 5.0?. I have to take off the efi and run a carb and different distributor to run it in my 26 dodge.

26dodge
June 18, 2013

will this one work on my 1987 5.0?. I have to take off the efi and run a carb and different distributor to run it in my 26 dodge.

Answers

June 19, 2013
Jason
This HEI distributor should work from 1968 to 2001 on the 302 engine. These are compatible for use with a "cast" roller cam but are NOT FOR USE with a "billet" roller cam.
1 answers

is this hardened gear compatable with roller cams

ron746
tn
December 13, 2012

is this hardened gear compatable with roller cams

Answers

December 13, 2012
Jason
Part #91012351 has a steel gear for roller camshafts
1 answers

Will this distributor work with an E303 cam?

Mike
Galesville, WI
May 17, 2015

Will this distributor work with an E303 cam?

Answers

May 19, 2015
John
Expert
I believe the E303 cam is a cast cam and if so this HEI distributor will work with it just fine. If you find different information from the supplier that it is indeed of billet composition the gear on the distributor is not compatible.
Page 1 of 1
