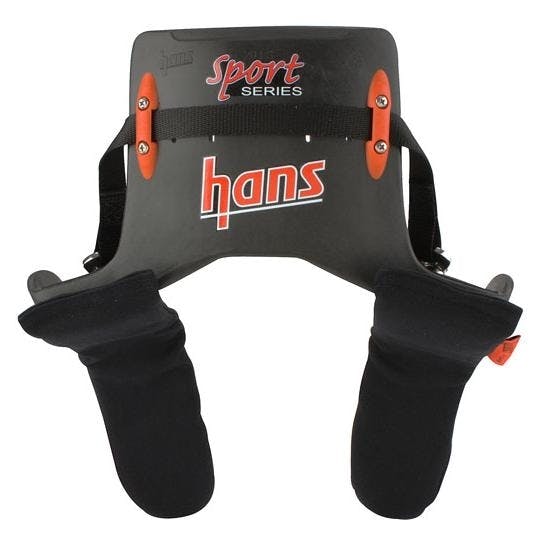

HANS Device Sport Series, Post Anchors, 20 Degree, Large

Price:$695.99
Sale:$565.99
$130.00 off
We're sorry, this item is not available.
HANS Device Sport Series - 20 Degree - Large
Price:
$695.99
EA
Sale Price:
$565.99
Discontinued
Item #:
451924221
Item Details:
Includes post anchors and sliding tether
HANS Device Sport Series, Post Anchors, 20 Degree, Large
Click image to enlarge Click image to enlarge
  • HANS Device Sport Series, Post Anchors, 20 Degree, Large
  • HANS Device Sport Series, Post Anchors, 20 Degree, Large
Watch the video below to learn more and see how to best select one of the HANS Devices Speedway Motors offers.



The HANS device stands for Head and Neck Support. It was designed with you and your family in mind. The goal in racing is to go faster than anyone else on the track and cross the finish line first. And as technologies increase speeds, it also increases the risks. Remember, you a have a family to go home to when the night of racing is over.

The primary difference between the Pro Series and the Sport Series is the weight. There is no difference in the safety protection offered with either one. The Sport Series weighs approximately 2.25lbs. We offer both models with quick disconnect sliding tethers. This gives you the most mobility and vision. You will need a 1/4" drill bit and a measuring tape to install the HANS device anchors to your helmet. Complete instructions and a special tool are included.

The injection molded super structural gives the same protection as the Pro Series. It weighs about 2.25lbs but has a more attractive price.

Hans Device Sizing Chart (Link)

QuickStart Guide (PDF)

Anchor Instructions (PDF)

SFI Recertification Notice (Link)

NOTE: These items will only be shipped to an address in the US, Canada and Mexico.



To select the HANS device for you, you will need to know a couple of things:

1) What degree of angle is your seat?

  • The most common are: 0-10 degree (upright & many sprint cars), 20 degree (most common, modifieds, stock cars, sprints), 30 degree (200lbs or more)

2) What does your neck measure?

  • The most common are: Medium (13.5"-17"), Large (16"-20")
Torque Specifications for HANS Device Fasteners

Detailed torque specification for HANS Device anchors and tether carriers

(A) Helmet Anchor Torque Specifications
POST ANCHOR
Torque specs for the indexing post screw are:
30 Inch Pounds (in-lbs) OR
3.4 Newton Meters (N-m) which is similar to:
Finger tight plus one quarter turn additional.

(B) Tether Clamp Torque Specifications
FIXED TETHER CARRIERS
Torque specs for the screws holding the metal fixed tether clamps are:
20 Inch Pounds (in-lbs) OR
2.25 Newton Meters (N-m)which is similar to:
Very tight.

SLIDING TETHERS CARRIERS
Torque specs for the screws holding the orange sliding tether carriers are:
8.0 Inch Pounds (in-lbs) OR
0.9 Newton Meters (Nm) which is similar to:
Finger tight.
