Griffin Radiators 4-230BG-HAA Flathead V8 30-31 Ford Aluminum Radiator

SAME DAY SHIPPING!

Specs
Material Type:
Aluminum
Overall Height:
27.50
Overall Width:
18.50
Transmission Cooler:
Yes
Tube Style:
Downflow
Sold in Quantity:
Each
Overall Thickness:
4.50
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Both Sides
Inlet Size:
1.75
Outlet Location:
Both Sides
Outlet Size:
1.75
Core Height:
22.50
Core Width:
17.50
Core Thickness:
2.25
Tube Size:
1.00
Filler Neck Height:
2.25
Radiator Style:
Single Pass
MFG. Part #:
4-230BG-HAA
Notes
1/8" NPT fittings for transmission cooler. 1.50" wide mounting tabs on both sides. 1/4" NPT drain fitting.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Griffin Aluminum radiators give superior cooling over a brass/copper radiator. Features 2 rows of 1" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator.

  • Built-in HD automatic transmission oil cooler
  • Hood support brackets are included
  • Brackets on side for gille shell
  • Brackets on top for support rods
  • No "dummy" filler neck
  • Core Dimensions: 18.50" wide x 22.50" tall x 2.25" thick

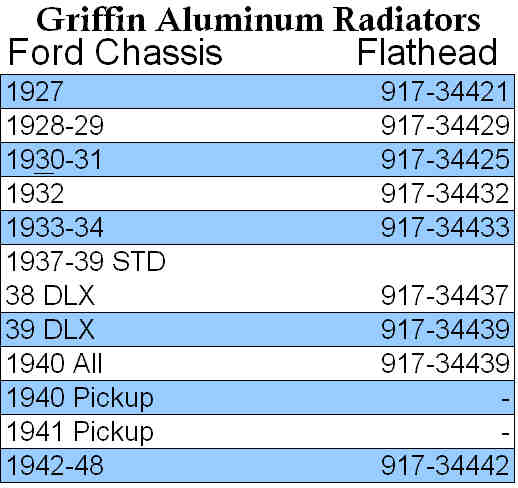

Griffin Application Chart (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
