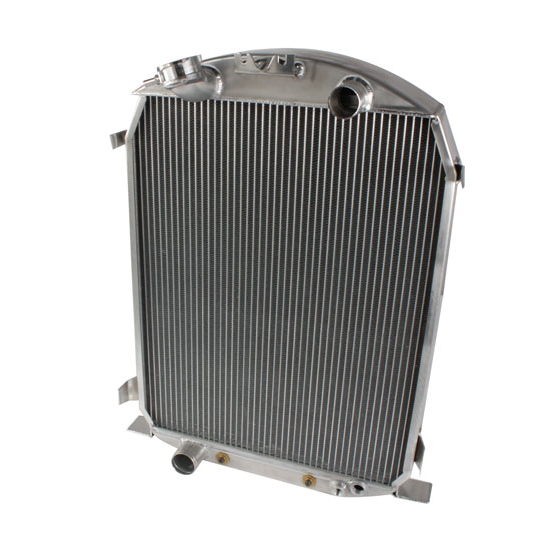

Griffin 4-230BG-FAA 1930-31 Ford Model A Aluminum Radiator, Ford V8

Price:
$649.99
EA
On Order
Item #:
91734221
Griffin 4-230BG-FAA 1930-31 Ford Model A Aluminum Radiator, Ford V8
Click image to enlarge Click image to enlarge
  • Griffin 4-230BG-FAA 1930-31 Ford Model A Aluminum Radiator, Ford V8
  • Griffin 4-230BG-FAA 1930-31 Ford Model A Aluminum Radiator, Ford V8
No video at this time.


Griffin Aluminum radiators give superior cooling over a brass/copper radiator. Features 2 rows of 1" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator.

  • Built-in HD automatic transmission oil cooler
  • Hood support brackets are included
  • Brackets on side for gille shell
  • Brackets on top for support rods
  • No "dummy" filler neck

Griffin Ford Engine Radiator Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

  • 91734221
    MFG. Part #
    4-230BG-FAA
    Overall Width
    18.500" (18 1/2")
    Overall Height
    27.250" (27 1/4")
    Overall Thickness
    4.500" (4 1/2")
    Core Width
    18.000"
    Core Height
    22.000"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Upper Right
    Filler Neck Height
    2.500" (2 1/2")
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Material Type
    Aluminum
    Finish
    Natural
    Sold in Quantity
    Each
    Notes
    1/8" NPT fittings for transmission cooler. 1.75" wide mounting tabs on both sides. 3/8" NPT sensor fitting. 1/4" NPT drain fitting.
