Grant 3294 3-Bolt Steering Wheel Adapter, Ford Applications

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Steering Wheel Style:
Grant
Spline Count:
40
MFG. Part #:
3294
Garage Sale:
No
Overall Thickness:
1.13
Overall Diameter:
4.08
Spline OD:
.70
Grant 3294 3-Bolt Steering Wheel Adapter, Ford Applications

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

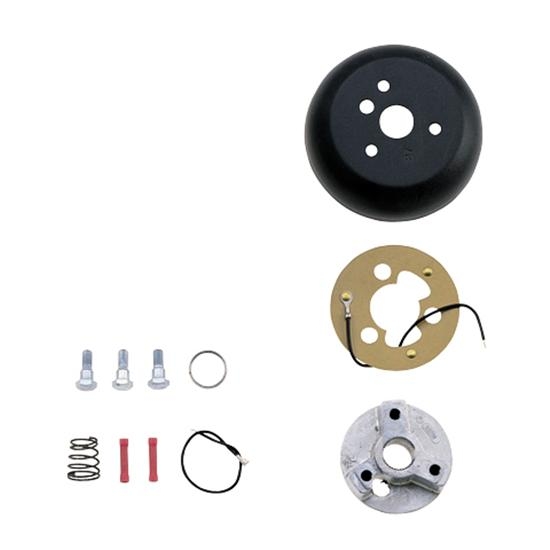

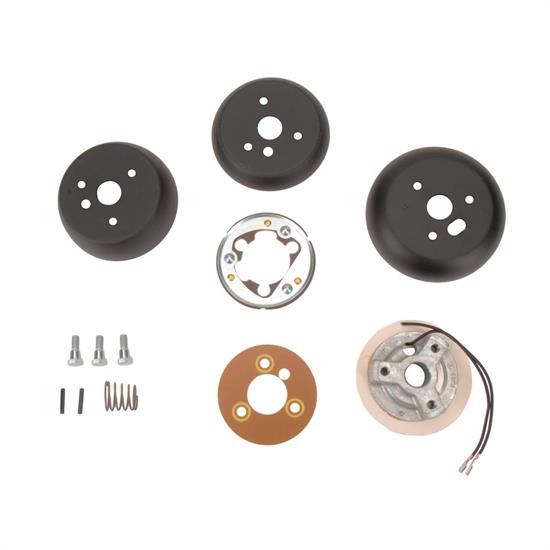

This is the standard Grant steering wheel installation kit for Ford steering columns. These kits may be used to install all Classic Series, Challenger Series or Signature Series steering wheels. Each kit contains complete step-by-step instructions, a die cast hub, Grade 5 hardware and matte black trim pieces.

Specs of bell covers:

  • (2) 3.63" x 1.13" (O.D. x Height)
  • (1) 4.08" x .92" (O.D. x Height)

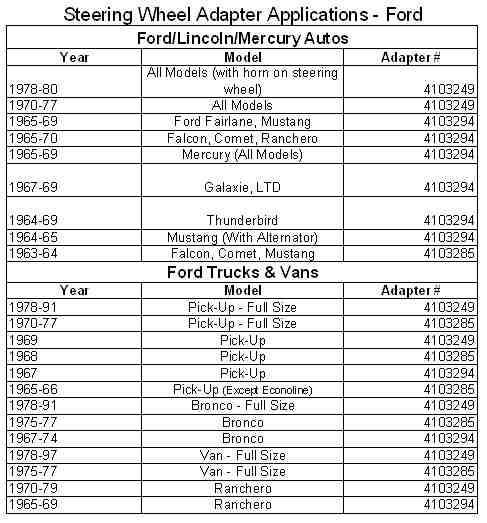

Adapter Application Chart (GIF)

410-3294 Instructions (PDF)

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

tomb
Verified Purchaser
Fountain City , WI

It gives you all the options

July 16, 2015
It went together very well and every thing fit good with the right parts
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jbone
Verified Purchaser
Carpentersville ill

Great product for the price

June 09, 2015
I bought this kit to install a vintage 3 spoke wood steering wheel in my 1969 mustang. It comes with great directions for an easy install that include pictures. The discription says it's a complete install kit but doesn't include a horn button. I would have ordered or it at the same time if I knew it wasn't included.
Pros:
  • Easy Installation
  • Fast Dilivery
  • Low Cost
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

trowlands007
Verified Purchaser
Olympia, WA, USA

exactly what i ordered

February 21, 2015
it was exactly what i ordered, and arrived fairly quickly.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

2 answers

Is this the "pickup" style adapter with the brass ring in the underside?

TenDollarMan
January 17, 2015

Is this the "pickup" style adapter with the brass ring in the underside?

Answers

February 22, 2015
trowlands007
no it isn't
January 20, 2015
EricM
This adapter does have the plate on the bottom side with the lead wires and it can be seen in detail in the picture here.
1 answers

Is this adpter tapered on the bottom side? I have a 1949 Ford F-1 pickup. It has the 40 spline shaft with NO key way. However, the shaft is tapered below the splines.

moneypit
Houston, TX, USA
November 22, 2014

Is this adpter tapered on the bottom side? I have a 1949 Ford F-1 pickup. It has the 40 spline shaft with NO key way. However, the shaft is tapered below the splines.

Answers

November 24, 2014
EricM
The steering wheel adapter # 4103294 does not go back as far as 1949 but if your spline count is 40 and the diameter O.D. is .70 then this adapter sounds like a possibility.
1 answers

if i buy this kit for my 73 F-100 what do i need to attach horn button as Functual horn button ? This question is assuming Grant 502 wheel with 3/4 I.D. fits. I already bought wheel not knowing spline,etc.

Ozzie
Akron,Oh.
September 19, 2015

if i buy this kit for my 73 F-100 what do i need to attach horn button as Functual horn button ? This question is assuming Grant 502 wheel with 3/4 I.D. fits. I already bought wheel not knowing spline,etc.

Answers

September 21, 2015
Eric
Expert
This is not the correct adapter kit for your '73 Ford pickup. Adapter kit 4103285 is correct for your application and it includes the necessary horn button hardware.
1 answers

will this fit a 1992 f150 pickup truck and what bolt pattern wheel will i need

bubba
paintrock ala
November 18, 2015

will this fit a 1992 f150 pickup truck and what bolt pattern wheel will i need

Answers

November 19, 2015
Eric
Expert
No this adapter will not fit your 1992 F150. Sorry we do not offer the correct adapter for your application.
Page 1 of 1
