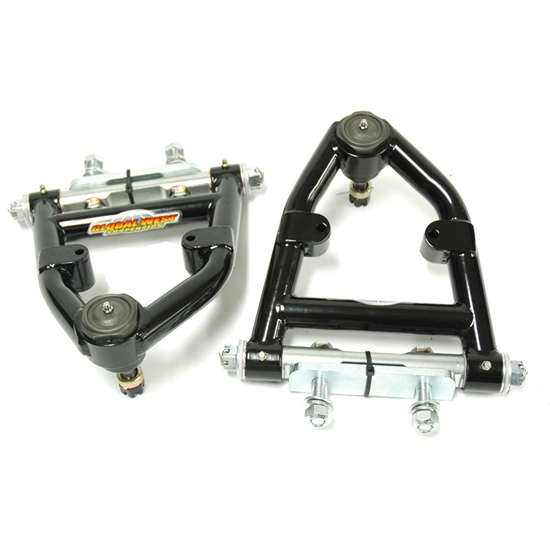

Global West Suspension MNR-733 1967-1973 Mustang Upper Control Arms

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Overall Width:
11.25
Sold in Quantity:
Pair
Finish:
Powder Coated
Shaft Diameter:
1.25
Tube O.D.:
1.27
Mounted Length:
11.38
Hardware Included:
Yes
Material Thickness:
.27
MFG. Part #:
MNR-733
Control Arm Bushing to Ball Joint Center:
9.50

Share by Email

From
To

Click image to enlarge

Watch the video below for more information regarding installation of the Global West control arm.

X

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Global West Negative Roll tubular upper control arms improve the geometry of the stock Mustang suspension while adding additional strength. The arms come pre-assembled and are supplied with billet steel cross shafts, Del-A-Lum low friction bushings, ball joints, and instructions.

  • Requires drilling new mount holes in your shock tower
  • Includes drill template
  • Changes camber curve when used with Global West lower arms
  • Generates negative camber to keep tire foot print flatter on the pavement
  • Gain improved cornering and longer tire life

Notes

What You Should Know:

  • The upper arm is not stock length and the ball joint angles have been corrected for the new mounting location. Do not use a stock arm in out mounting holes.
  • This is NOT a Shelby modification.
  • If you have already done the Shelby modification you have two choices:
    1. You can use our control arm in the Shelby location however the curve (camber gain) will not be the same. Negative camber gain is reduced. If you are not racing the car it is not a big deal and you will still feel a handling improvement. If you plan on racing then you must do option 2.
    2. Weld up the Shelby holes and drill new holes using our template.
  • Shorter performance springs are recommended for both MNR kits. If stock springs are used, trimming the spring will be required. Progressive rate springs are not recommended with the Negative Roll System.
  • Negative Roll System should never be used for drag racing.
