Gasser Straight Axle, Ford Spindle and Brake Kits, 58-1/4 Hub-to-Hub

Free Shipping Free Shipping
Gasser Straight Axle, Ford Spindle and Brake Kits, 58-1/4 Hub-to-Hub
Product Video
Gasser Straight Axle, Ford Spindle and Brake Kits, 58-1/4 Hub-to-Hub

Click image to enlarge

Watch the video below to learn more about Speedway Motors street rod spindles.

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Details

Reviews

Q & A

What's in the Box

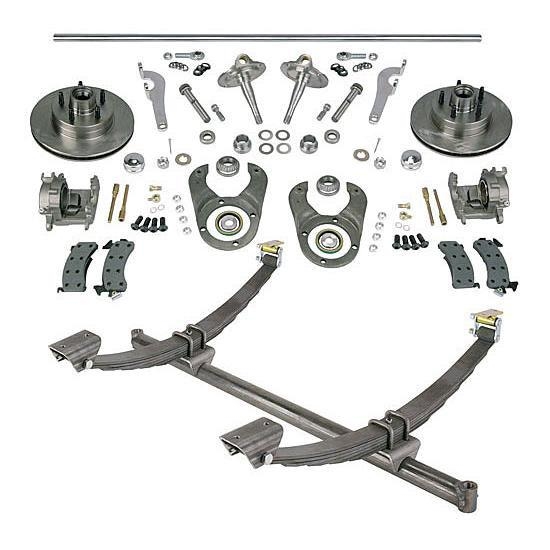

These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3550 Instructions (PDF)

Item Details

37-41 Ford Spindles, Specify bolt pattern,
50" Wide axle - 58 1/4" hub to hub.

Notes

  1. If using steel wheels with Wilwood kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheels from galling the aluminum hub.
  2. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

Gasser Kit w/ "Ford" Spindles

  • Leaf springs, 31-1/4" long x 1-3/4" wide
    • 6 leaf, 1/4" thick
    • 400 lbs/inch spring rate
  • Ford-style spindles (drop forged 4140 steel)
    • Modeled after the 1937-41 round-back design
    • Uses 1937-41 Ford king pins (included)

"Ford" Spindle Standard Brake Kit

  • 5 x 4-1/2" Ford/Mopar bolt pattern
    • 11" vented iron rotor, 1" thick
    • Hub flange (hat) diameter -
    • 1/2" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16"-20 banjo bolt to AN-3 line adapter kit
  • 5 x 4-3/4" GM bolt pattern
    • 11" vented iron rotor, 1" thick
    • Hub flange (hat) diameter - 6-1/4"
    • 7/16" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16"-20 banjo bolt to AN-3 line adapter kit

"Ford" Spindle Wilwood Brake Kit (must use 15"+ wheels)

  • Forged Dynalite 4-piston Calipers
  • 11.00" x .810" Ultralite HP 30 Vane iron rotors
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
  • 1/2"-20 wheel studs

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

David
Verified Purchaser
Kountze,TX

Very nice axle kit

January 27, 2012
Nice parts, but could use better, more detailed instructions.
Pros:
  • Complete
  • Good quality construction
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Availability of a 52" axle I am interested in the gasser front axle and brake kit with the ford spindles. How much would it be for the kit with a 52" axle instead of a 50"?

JGrace4010
Philadelphia, PA, USA
November 04, 2014

Availability of a 52" axle I am interested in the gasser front axle and brake kit with the ford spindles. How much would it be for the kit with a 52" axle instead of a 50"?

Answers

November 05, 2014
EricM
We do not stock a 52" axle but we can build it as a custom length for you. It is $25 extra for the custom length axle. Custom lengths are only available in a straight axle (no custom length drop axles.)
1 answers

which kit for a 1965 ford falcon? using 4.5 wide rims up front stock width rear

thehankster
Keota, IA 52248, USA
May 12, 2014

which kit for a 1965 ford falcon? using 4.5 wide rims up front stock width rear

Answers

May 13, 2014
EricM
If you measure hub face to hub face where your wheels currently mount now that will tell us the correct width. The 48” axle width nets 56 ½” track width and going down to a 46" axle nets 2” less (54 1/2") and so on. If you get the hub to hub and the wheels set where you like them then you can go by the available measurements to determine which size you want.
1 answers

I would like to know what width gasser axle to order for my 66 chevy II ,what width is most common for 62-67 chevy II.

May 22, 2012

I would like to know what width gasser axle to order for my 66 chevy II ,what width is most common for 62-67 chevy II.

Answers

May 24, 2012
John
Most of our customers doing a gasser set up on the early Nova’s use a 46” axle in conjunction with the smaller wheel and tire combinations. In addition you may want to substitute in the 29” springs as your wheel to bumper dimension is fairly close on the early Nova’s and this allows keeping the spring behind the front bumper.
1 answers

What is the difference in for and for the FORD CHEVY?

nabe
japan
April 28, 2015

What is the difference in for and for the FORD CHEVY?

Answers

April 29, 2015
Eric
Expert
The Ford version uses Ford spindles and 11" rotors. The Chevy version uses Chevy spindles and 9 1/4" rotors. Both versions are available in 5 on 4.5" and 5 on 4.75" bolt patterns.
Page 1 of 1
