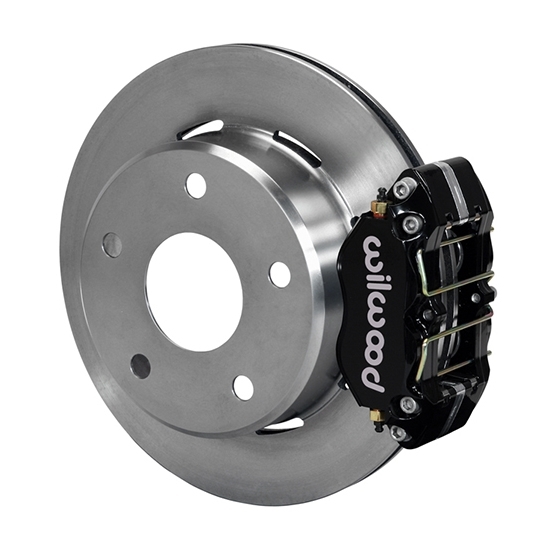

Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit
Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit

Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit
Image Gallery
Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit
Garage Sale - Wilwood 140-13664, Dynapro Lug Mount Pro-Series Rear Disc Brake Kit
Zoomed In Image
Part # UP64278
Save 12%
$699.99
$800.84
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Info

This brake kit is garage sale priced because it has been opened, handled and can't be sold as new.

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 76-77 rear axles with Big Ford New flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

  • Rear End Axle: Big Ford New Style Bronco
  • Mount Type: Lug
  • Wheel Diameter: 15 Inches
  • Caliper: 120-9703
    • Type: Dynapro Lug Mount
    • Finish: Black Powder Coat
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Lug
    • Brake Pad Compound: BP-10
  • Rotor: 160-13327
    • Type: Ultralite HP 32 & Hat
    • Style: Plain Face
    • Surface Finish: Plain
    • Material: Iron
    • Diameter: 12.19"
    • Width: .81"
    • Vane Count: 32 V
    • Design Type: ULHP

Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
