Garage Sale - Stainless Steel 3/4"-36 X 3/4" DD U-Joint

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

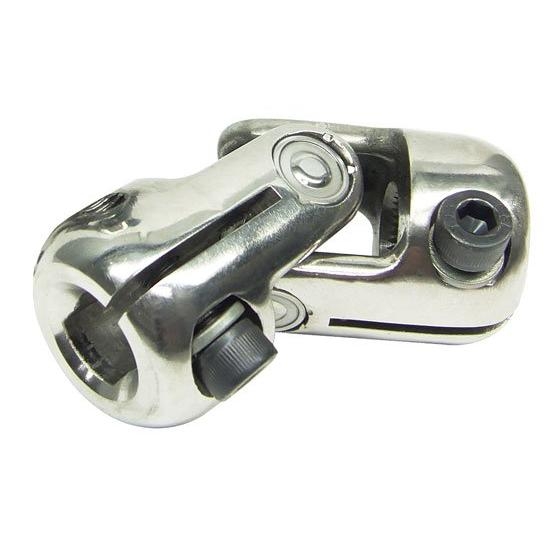

These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation.

Spline Size (Link)



This u-joint is garage sale priced because it has some scratches from being test fit.



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2

Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Specs

The OD is 1.650" (41.90mm)

Item Details

This u-joint is garage sale priced because it has some scratches from being test fit.

You may also be interested in:

Sweet Mfg Steering U-Joint, 9/16 26 Spline to 3/4 DD, Mustang II Manual


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature forged Vanadium steel yokes and full compliment bearings.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. Double Steering U-Joint, 1 Inch-48 Spline to 3/4 Inch Round, GM Column


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

  • Overall length is 5-1/2”
  • O.D. at ends is 1.12”
  • O.D. in the middle is 1.476”
  • O.D. at caps is 1.350”
  • O.D. at cap retainer screws is 1.545”
  • Length of center section is 2-3/4”
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth


These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inch in total length and have a 1.650 inch diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
