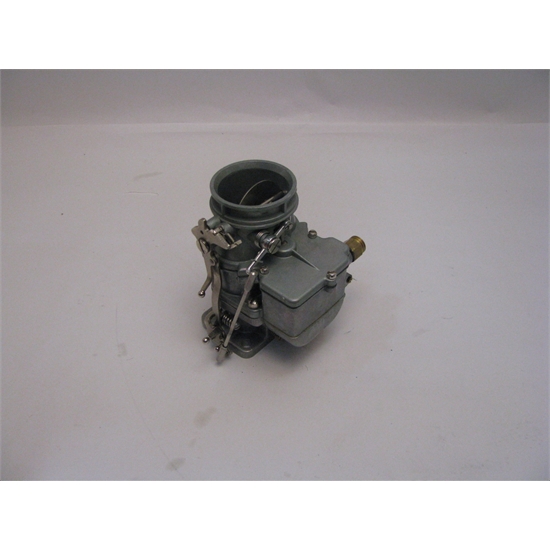

Garage Sale - Speedy's 9 Super 7 3-Bolt Carburetor




Speedway Motors now offers a reproduction version of one of the most popular 2 barrel carburetors ever used, the original Stromberg 97! Original equipment on '30s and '40s cars and trucks, the Stromberg 97 has long been favored by Flathead builders, hot rodders and racers who realized the performance qualities of this timeless fuel supplier.
There have been numerous attempts to reproduce this two barrel carb, with little success. "Speedy" Bill Smith of Speedway Motors in Lincoln, Nebraska, took on the challenge to make a great product even better. The 9 Super 7 ® carb brings this reproduction of the original Stromberg 97 into the 21st Century!
Speedway Motors has incorporated all of the improvements shown above while maintaining the carburetor's original look. Features such as the choke assembly, accelerator pump, main jets and cosmetics have all been faithfully retained. Additionally, each carburetor is individually flow tested and inspected for leaks. Perfection is the result!
Aesthetically, the 9 Super 7 ® is nearly identical to the stock unit, minus the large 97 logo that appeared on the side and the patent numbers found on the float bowl area. Upgraded internal parts include; the float, needle, and seat. Jetting and power valve settings remain as they were for the original 97 carbs as well as the cfm and vacuum specs.
The other similarity that the 9 Super 7 ® shares with the original 97 is the setup and tuning necessary to yield a well-running machine. While perhaps not as simple as bolting on a single four-barrel, the 9 Super 7 makes setting up a multiple carburetor induction system easier than when Strombergs were available new. All that's required is an intake, a linkage system, a Uni-Syn syncing tool, and a little patience. Be sure to include the Secondary 9 Super 7  when installing multi-carb setups. Our 3 Carb kits come with one  primary carburetor and two secondary carburetors while the 2 Carb kits  are both primary carbs. See our Multiple Carburetor Tech Tip for more information on using the 9 Super 7 in a 2x2 or 3x2 carb set-up.
All-new tooling for crisp, flawless castings
New aluminum base assembly allows for cooler fuel temps and better fuel efficiency as compared to the original cast iron design
Stainless steel screws and hardware
Choke assembly, accelerator pump, and jets have all been faithfully retained and accept standard Stromberg parts
Features original Stromberg 0.97" venturi diameter
Modern Nitrophyl float and Neoprene gaskets
Original troublesome needle and seat replaced by a Grose-style fuel inlet valve to better cope with higher fuel pressures and improved high speed running
Will not stick or dribble like the old Viton-tipped needle and seat setups
Grose-style jet valve won't corrode in modern fuel, something the original needle and seat units can't do
Comes with a No. 65 power valve and 0.045" main jets, identical to the stock 97
Extended brass throttle shaft to simplify multi-carb linkage
915-11657 9 Super 7® Carb Instructions (PDF)







Speedway Motors now offers a reproduction version of one of the most  popular carburetors ever used, the original Stromberg 97! Original  equipment on '30s and '40s cars and trucks, the Stromberg 97 has long  been favored by flathead hot rodders and racers who realized the  performance qualities of this timeless fuel supplier.
There have  been numerous attempts to reproduce this unit, with little success.  "Speedy" Bill Smith of Speedway Motors in Lincoln, Nebraska, took on the  challenge to make a great product even better. The 9 Super 7 ® Carb  brings this reproduction of the original Stromberg 97 2 barrel carb into  the 21st Century!
Speedway Motors has incorporated all of the  improvements shown above while maintaining the carburetor's original  look. Features such as the choke assembly, accelerator pump, main jets  and cosmetics have all been faithfully retained. Additionally, each  carburetor is individually flow tested and inspected for leaks.  Perfection is the result!
Aesthetically, the 9 Super 7 is  nearly  identical to the stock  unit, minus the large 97 logo that  appeared on the  side and the patent  numbers found on  the float bowl  area. Upgraded internal parts include;  the float, needle, and seat.  Jetting and power valve settings remain as  they were for the original  97 carbs as well as the cfm and vacuum specs.
The   other  similarity that the 9 Super 7 shares with the original 97  is  the setup  and tuning necessary to yield a well-running machine.  While  perhaps  not as simple as bolting on a single four-barrel, the 9  Super 7  makes  setting up a multiple carburetor induction system easier  than  when  Strombergs were available new. All that's required is an  intake, a  linkage system, a Uni-Syn syncing tool, and a little patience. Be sure to include the Secondary 9 Super 7  when installing multi-carb setups. Our 3 Carb kits come with one  primary carburetor and two secondary carburetors while the 2 Carb kits  are both primary carbs.  See our Multiple Carburetor Tech Tip for more information on using the 9 Super 7 in a 2x2 or 3x2 carb set-up.
All-new tooling for crisp, flawless castings
New aluminum base assembly allows for cooler fuel temps and better fuel efficiency as compared to the original cast iron design
Stainless steel screws and hardware
Choke assembly, accelerator pump, and jets have all been faithfully retained and accept standard Stromberg parts
Features original Stromberg 0.97" venturi diameter
Modern Nitrophyl float and Neoprene gaskets
Original   troublesome needle and seat replaced by a Grose-style fuel inlet valve   to better cope with higher fuel pressures and improved high speed   running
Will not stick or dribble like the old Viton-tipped needle and seat setups
Grose-style jet valve won't corrode in modern fuel, something the original needle and seat units can't do
Comes with a No. 65 power valve and 0.045" main jets, identical to the stock 97
Extended brass throttle shaft to simplify multi-carb linkage
Perfect for use with our dual carb intake manifolds for Ford Flatheads
915-11655 9 Super 7® Carb Instructions (PDF)







Speedway Motors now offers a reproduction version of one of the most  popular carburetors ever used, the original Stromberg 97! Original  equipment on '30s and '40s cars and trucks, the Stromberg 97 has long  been favored by flathead hot rodders and racers who realized the  performance qualities of this timeless fuel supplier.
There have  been numerous attempts to reproduce this unit, with little success.  "Speedy" Bill Smith of Speedway Motors in Lincoln, Nebraska, took on the  challenge to make a great product even better. The 9 Super 7 ® Carb  brings this reproduction of the original Stromberg 97 2 barrel carb into  the 21st Century!
Speedway Motors has incorporated all of the  improvements shown above while maintaining the carburetor's original  look. Features such as the choke assembly, accelerator pump, main jets  and cosmetics have all been faithfully retained. Additionally, each  carburetor is individually flow tested and inspected for leaks.  Perfection is the result!
Aesthetically, the 9 Super 7 is  nearly  identical to the stock  unit, minus the large 97 logo that  appeared on the  side and the patent  numbers found on  the float bowl  area. Upgraded internal parts include;  the float, needle, and seat.  Jetting and power valve settings remain as  they were for the original  97 carbs as well as the cfm and vacuum specs.
The   other  similarity that the 9 Super 7 shares with the original 97  is  the setup  and tuning necessary to yield a well-running machine.  While  perhaps  not as simple as bolting on a single four-barrel, the 9  Super 7  makes  setting up a multiple carburetor induction system easier  than  when  Strombergs were available new. All that's required is an  intake, a  linkage system, a Uni-Syn syncing tool, and a little patience. Our 3 Carb kits come with one  primary carburetor and two secondary carburetors while the 2 Carb kits  are both primary carbs.  See our Multiple Carburetor Tech Tip for more information on using the 9 Super 7 in a 2x2 or 3x2 carb set-up.
3-Carb setups come with two "secondary" carbs for front and rear intake position and one "primary" carb for central/middle position
All-new tooling for crisp, flawless castings
New aluminum base assembly allows for cooler fuel temps and better fuel efficiency as compared to the original cast iron design
Stainless steel screws and hardware
Features original Stromberg 0.97" venturi diameter
Modern Nitrophyl float and Neoprene gaskets
Original   troublesome needle and seat replaced by a Grose-style fuel inlet valve   to better cope with higher fuel pressures and improved high speed   running
Will not stick or dribble like the old Viton-tipped needle and seat setups
Grose-style jet valve won't corrode in modern fuel, something the original needle and seat units can't do
Comes with a No. 65 power valve and 0.045" main jets, identical to the stock 97
Extended brass throttle shaft to simplify multi-carb linkage
Primary Carb - (1) Middle Position
Choke assembly, accelerator pump, and jets have all been faithfully retained and accept standard Stromberg parts
Secondary Carb - (2) Front and Rear Position
Special base plate with no idle circuits or choke linkage
Special butterflies and shafts installed
Works best with progressive linkage
Idle only off the center or main carburetor
No more plug foul
Note: The secondary carbs have NO choke, and they have NO idle system.
915-11655 Primary Carburetor Instructions (PDF)
