Garage Sale - MAHLE Small Block Chevy 350 Powerpak Pistons, Inverted Dome, 5.7 Rod




Tapered inner face. Hard anodized billet aluminum.
Made extra deep with stainless steel adjusting straps for years of dependable service.
Available in three sizes: 4.000-4.090 bore, 4.125-4.215 bore and 4.250-4.375 bore.
Ring Style Chart (GIF)








Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.
High ductility 2618 alloy
Dual forced pin oiling on most applications
Lateral gas porting on higher compression ratios
Fully machined with deep valve pockets
Second land accumulator grooves
Top land mini groove technology
Diamond finished skirts
Triple wound spiral locks
For Chevy 350 c.i. (4.000" bore x 3.48" stroke). Use Style C rings (1/16", 1/16", 3/16").
Ring Style Chart (GIF)
474-717 Instructions (PDF)






                                                        All balancing is done with our state-of-the-art "hines" balancer by race mechanics with over 30 years of experience. A kit purchased with the optional balance job will ship in 24-48 hours.









Accurately set end gap with this electric ring filer. Powered by a 12-volt rechargeable battery, it offers maximum speed and affordability.
Comes with two 120-grit grinding wheels and battery charger. Portable or can be bench mounted.

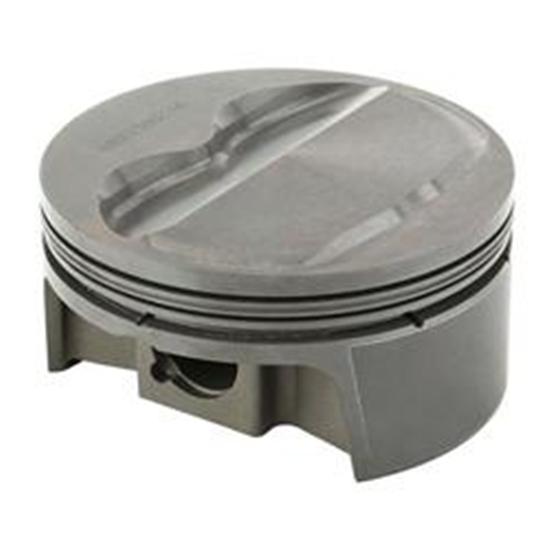

The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability.
1.5mm, 1.5mm, 3.0mm file fit performance ring set is included. For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke).
Comp Height 5.7" Rod:  1.550
Pin Diameter:  0.927
Clearance Guide
*Meas. = 0.500
Min = 0.0025
Max = 0.0033
*The  location to measure piston-to-wall clearance for each application. This  point is calculated from the bottom of the piston skirt and indicates  the widest part of the piston and thus where to measure. For all Mahle  350 pistons except 4V Flat 503-55004 for which Meas. = 0.465
PowerPak Piston Chart Application (GIF)

Clearance!!

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS







The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability.
1.5mm, 1.5mm, 3.0mm file fit performance ring set is included. For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke).
Comp Height 5.7" Rod:  1.550
Pin Diameter:  0.927
Clearance Guide
*Meas. = 0.500
Min = 0.0025
Max = 0.0033
*The  location to measure piston-to-wall clearance for each application. This  point is calculated from the bottom of the piston skirt and indicates  the widest part of the piston and thus where to measure. For all Mahle  350 pistons except 4V Flat 503-55004 for which Meas. = 0.465
PowerPak Piston Chart Application (GIF)







The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability.
1.5mm, 1.5mm, 3.0mm file fit performance ring set is included. For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke).
Comp Height 5.7" Rod:  1.550
Pin Diameter:  0.927
Clearance Guide
*Meas. = 0.500
Min = 0.0025
Max = 0.0033
*The  location to measure piston-to-wall clearance for each application. This  point is calculated from the bottom of the piston skirt and indicates  the widest part of the piston and thus where to measure. For all Mahle  350 pistons except 4V Flat 503-55004 for which Meas. = 0.465
PowerPak Piston Chart Application (GIF)







The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability.
1.5mm, 1.5mm, 3.0mm file fit performance ring set is included. For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke).
Comp Height 6.0" Rod:  1.250
Pin Diameter:  0.927
Clearance Guide
*Meas. = 0.500
Min = 0.0025
Max = 0.0033
*The  location to measure piston-to-wall clearance for each application. This  point is calculated from the bottom of the piston skirt and indicates  the widest part of the piston and thus where to measure. For all Mahle  350 pistons except 4V Flat 503-55004 for which Meas. = 0.465
PowerPak Piston Chart Application (GIF)







The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability.
1.5mm, 1.5mm, 3.0mm file fit performance ring set is included. For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke).
Comp Height 6.0" Rod:  1.250
Pin Diameter:  0.927
Clearance Guide
*Meas. = 0.500
Min = 0.0025
Max = 0.0033
*The  location to measure piston-to-wall clearance for each application. This  point is calculated from the bottom of the piston skirt and indicates  the widest part of the piston and thus where to measure. For all Mahle  350 pistons except 4V Flat 503-55004 for which Meas. = 0.465
PowerPak Piston Chart Application (GIF)
