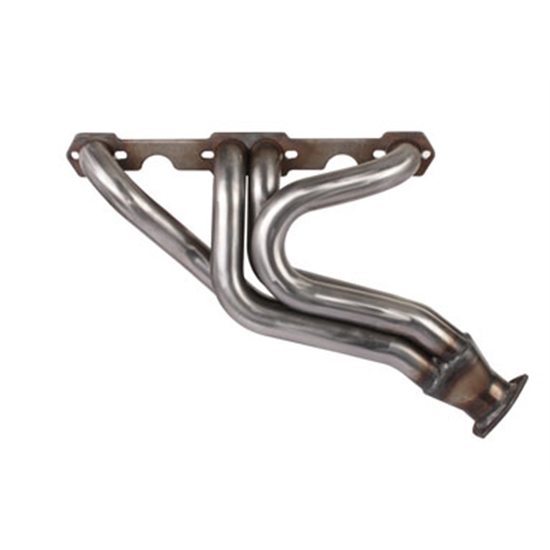

Garage Sale - Left Side 1955-57 Small Block Chevy Chassis Header
Garage Sale - Left Side 1955-57 Small Block Chevy Chassis Header

Garage Sale - Left Side 1955-57 Small Block Chevy Chassis Header

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Garage Sale - Left Side 1955-57 Small Block Chevy Chassis Header
Image Gallery
Garage Sale - Left Side 1955-57 Small Block Chevy Chassis Header
Garage Sale - Left Side 1955-57 Small Block Chevy Chassis Header
Zoomed In Image
Part # 930C7.LGS
Save 50%
$39.99
$79.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Info

This is garage sale priced because it is only a left side header and will need to be modified as it sits to close to the spark plugs.

No Warranty, No Returns on Garage Sale Items



These Speedway headers allow you to keep the exhaust system under your '55-'57 Chevy car. The "3/4-length" design provides more ground clearance than full-length headers, yet makes more power than "shorty" style headers. These chassis headers fit 283-400 S/B Chevy V8s and has 1-5/8" primary tubes with 2-1/2" collectors.

  • Mid-length design offers maximum ground clearance
  • Designed to work with stock or 605 power steering box
  • Fits cars using an original V-8 pitman arm (some aftermarket arms may cause an interference)
  • Will work with side engine mounts with engine in stock location
  • Fits standard and Vortec-style small-block Chevy heads (not D-port, LT-1 or ZZ-4)
  • Does not work with stock clutch linkage
  • (Please use the chart below to help with dimensions.) Drivers side A dimension is 3-1/2" up by the head and 5-5/8" at the collector, B dimension is 15", and C dimension is 21".  Passenger side A dimension is 4" at the head and 6-5/8" at the collector, B is 15", and C is 21".

    Dimension Chart (GIF)

Notes

These headers do not fit angle-plug heads. They do work with a "605"steering box.  They work with most any bellhousing and most any motor mounts.  Some aftermarket starters may be in the way.  Designed to fit cars using an original V-8 pitman arm.  Some aftermarket arms may cause an interference.

Specs

Material Type:
Steel
Sold in Quantity:
Each/Driver
Finish:
Painted
Tube O.D.:
1.63
Port Height:
1.66
Port Width:
1.38
Flange Thickness:
.35
Flange Style:
Oval Port
Collector Diameter :
2.50
Gasket(s) Included:
No
Hardware Included:
No
Drivers Side Dimension A:
5.35
Drivers Side Dimension B:
15.20
Drivers Side Dimension C:
21.00





Collector Length:
4.00
Garage Sale:
Yes
