Garage Sale - Electric Exhaust Cut-Outs

Garage Sale - Electric Exhaust Cut-Outs
Garage Sale - Electric Exhaust Cut-Outs
Garage Sale - Electric Exhaust Cut-Outs

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

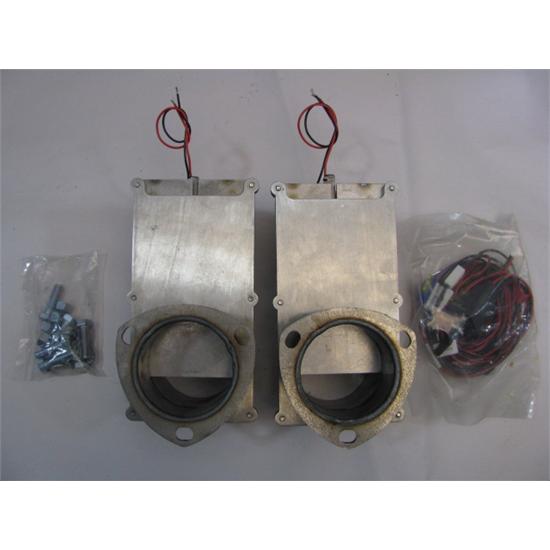

Make more horsepower and amaze your friends with our electric exhaust cutouts. These cutouts feature a heavy duty 12 volt motor and a knife-edged sliding plate that will completly seal each time it is opened and closed. Includes a rocker switch to operate the cut-out from your dash. Choose 2-1/2", 3" or 3-1/2" collector. Sold per pair. Some cutting and welding is required for installation.

  • Stainless steel construction
  • Dayton gear reduction 12 volt dc motors
  • Rack and pinion drive mechanism
  • Self cleaning knife edge seat for leak proof seal
  • No exhaust leak noise when closed
  • Harness pre wired for easy installation
  • Kits include 2 cut-outs, wiring harness, gaskets and hardware
  • Easy installation with cut-out hookup kits listed below

Kit includes:

  • Two cut-outs
  • Wiring harness
  • Two collector gaskets
  • Nuts, bolts & washers
  • Grommets
  • Electrical connectors
NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.

You may also be interested in:

Steel Exhaust Collector Ring, 3 Inch
(Part #91013370)
                        Mild steel flanges can be welded to exhaust pipes, mufflers or header collectors so your exhaust system can easily be unbolted and removed. Flanges are 1/4" thick and feature the common 3-bolt mount pattern.

Slip-Over Kickout Extension Pipes, Plain, 3-1/2 x 20 Inch
(Part #91013378)


These extensions are designed for use with "T" roadster headers. Professionally cut and mandrel bent extensions slip over 3-1/2" collector pipes. Raw finish mild steel.

Dougs Headers H1130 Exhaust Cut-Out Hook-Up Kit, 2-1/2 Inch
(Part #4471130)


Avoid an expensive trip to the muffler shop by using this cut-out hookup kit when installing our electric exhaust cut outs. Some fabrication required but no welding nescessary. Kits are sold as a pair and come with mounting hardware.

These hook-up kits are made for our electric cut-outs but can be used for other applications.

  • Overall length of pipe = 9.00"
  • Length of stepped pipe splicing into exhaust = 2.00" each side
  • Center pipe length (between stepped pipes) = 5.00"
  • Cut out length (center of weld to edge of flange) = 5.50"
  • 40.4 degree angle
Dougs Headers H1132 Exhaust Cut-Out Hook-Up Kit, 3 Inch
(Part #4471132)


Avoid an expensive trip to the muffler shop by using this cut-out hookup kit when installing our electric exhaust cut outs. Some fabrication required but no welding nescessary. Kits are sold as a pair and come with mounting hardware.

These hook-up kits are made for our electric cut-outs but can be used for other applications.

  • Overall length of pipe = 10.00"
  • Length of stepped pipe splicing into exhaust = 2.00" each side
  • Center pipe length (between stepped pipes = 6.00"
  • Cut out length (center of weld to edge iof flange) = 7.50"
  • 36.7 degree angle
Dougs Headers H1134 Exhaust Cut-Out Hook-Up Kit, 3-1/2 Inch
(Part #4471134)


Avoid an expensive trip to the muffler shop by using this cut-out hookup kit when installing our electric exhaust cut outs. Some fabrication required but no welding nescessary. Kits are sold as a pair and come with mounting hardware.

These hook-up kits are made for our electric cut-outs but can be used for other applications.

  • Overall length of pipe = 12.00"
  • Length of stepped pipe splicing into exhaust = 2.00" each side
  • Center pipe length (between stepped pipes = 8.00"
  • Cut out length (center of weld to edge iof flange) = 9.50"
  • 31.4 degree angle
