Garage Sale - ACL P-Series S/B Chevy Large Journal Rod Bearings
Garage Sale - ACL P-Series S/B Chevy Large Journal Rod Bearings

Click image to enlarge

Speeday Motors Logo
X
Garage Sale - ACL P-Series S/B Chevy Large Journal Rod Bearings

Details

Reviews

Q & A

What's in the Box

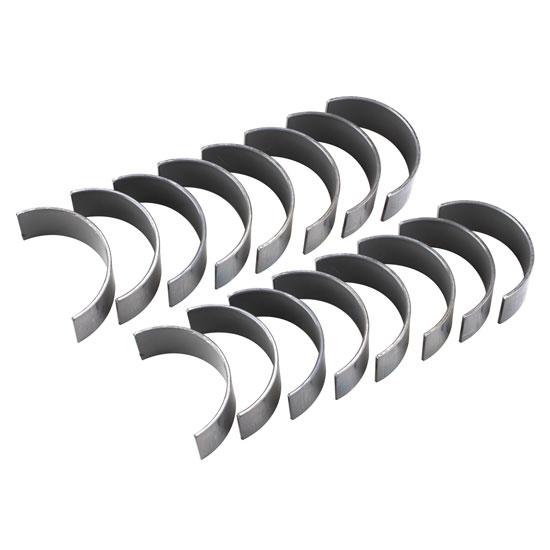

These tri-metal P-Series Duraglide bearings from ACL fit S/B Chevy Large Journal engines with 2.100" rod journals.

Fits 1969 and later 302-305-327-350-400 c.i. V-8.



These bearings are garage sale priced because they have been discontinued.



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



Notes

  1. We also reccomend ACL P-Series main bearings in situations where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.

Item Details

Clearance!!

You may also be interested in:

Elgin EPL-4 Assembly Lube, 4 Oz.


Eliminates galling, metal transfer and oil starvation during initial break-in. Adheres to metal surfaces, will not drain off. Apply to bearings, gears, crankshafts, cam lobes, valve stems, lifters and all mating parts with close tolerances.

For gas, alcohol and nitro engines.

Learn why using assembly lube is so important in our tech article, Installing New Hardware.

Clevite P-Series 1969-Up Small Block Chevy Main Bearings


Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 302-305-327-350 S/B Chevy "Large Journal" engines built from 1969-Up (with 2.100" rod journal).

  • Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in.
  • Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.

Note: Will not work with 400 c.i. V-8.

P-Series Features (Link)

Clevite Application Chart

Clevite P-Series 1969-Up Small Block Chevy Rod Bearings


Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 400 c.i. S/B Chevy V-8 engines (1970-1980).

  • Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in.
  • Large Journal
  • Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.

P-Series Features (Link)

Green Plastigauge for Bearing Clearance, .001-.003 Inch
                        Place a piece of this thread on a rod or main journal, torque cap in place, remove cap and by using the included chart, you know what your bearing clearance is. You should have one of each when assembling your engine.

ACL H-Series Rod Bearings Small Block Chevy Large Journal
                        ACL H-Series Duraglide bearings feature a tri-metal design. Fits S/B Chevy 350/400 with Large Journal crankshafts (2.100").
  • Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
  • H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface.
  • If you aren't sure which type of performance bearing to start with, the H-Series will be your best choice.
King HP Series 1969-Up Small Block Chevy Rod Bearings

  • Bi-metal aluminum silicon alloy featuring fine micro-bore finish
  • Mains and rods are narrowed for large radius crankshafts
  • Greater rod bearing height improves bearing-to-bore contact/heat transfer and reduces spin potential at high RPM
  • 0.015" thick top layer for superior macro particle embedability and conformability
  • 40 Vickers hardness to resist overlay migration and extrusion
  • 450°F heat threshold for superior protection against friction and overheating
