Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated
Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated

Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated
Image Gallery
Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated
Garage Sale - 1955-1957 Small Block Chevy Chassis Headers, AHC Coated
Zoomed In Image
Part # 930C7H.GS
Save 11%
$239.99
$269.99
pair
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Info

This item is garage sale priced because there are a few scuffs in the coating and it's missing the collector gaskets and hardware.


Header gaskets and bolts are included.



**NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS**

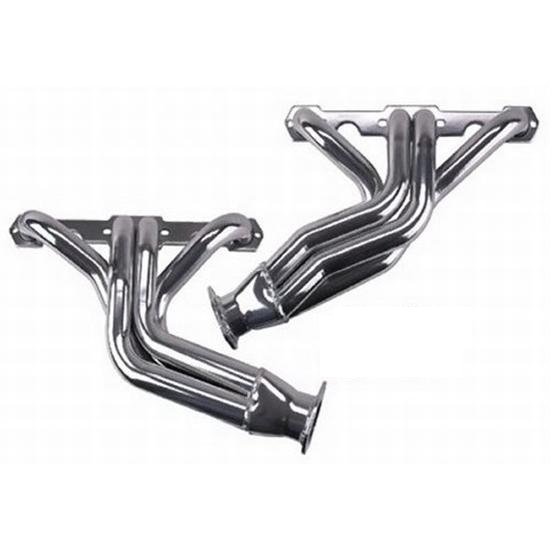

hese Speedway headers allow you to keep the exhaust system under your '55-'57 Chevy car. The "3/4-length" design provides more ground clearance than full-length headers, yet makes more power than "shorty" style headers. These chassis headers fit 283-400 S/B Chevy V8s and has 1-5/8" primary tubes with 2-1/2" collectors. These ceramic coated headers provide superior performance and durability.

  • Mid-length design offers maximum ground clearance
  • Designed to work with stock or 605 power steering box
  • Fits cars using an original V-8 pitman arm (some aftermarket arms may cause an interference)
  • Will work with side engine mounts with engine in stock location
  • Fits standard and Vortec-style small-block Chevy heads (not D-port, LT-1 or ZZ-4)
  • Does not work with stock clutch linkage
  • (Please use the chart below to help with dimensions.) Drivers side A dimension is 3-1/2" up by the head and 5-5/8" at the collector, B dimension is 15", and C dimension is 21".  Passenger side A dimension is 4" at the head and 6-5/8" at the collector, B is 15", and C is 21".

    Dimension Chart (GIF)

NOTE:  These headers do not fit angle-plug heads. They do work with a "605"steering box.  They work with most any bellhousing and most any motor mounts.  Some aftermarket starters may be in the way.  Designed to fit cars using an original V-8 pitman arm.  Some aftermarket arms may cause an interference.

Notes

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300®® F.

Specs



Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

Notes

Includes a pair of reducers (2.50" to 2.25")

Specs

Material Type:
Steel
Sold in Quantity:
Pair
Finish:
AHC Coated
Flange Style:
Oval Port
Header Tube Type:
Chassis
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
Yes
Tube O.D.:
1.63
Port Height:
1.66
Port Width:
1.38
Flange Thickness:
.35
Collector Diameter :
2.50
Drivers Side Dimension A:
5.35
Drivers Side Dimension B:
15.20
Drivers Side Dimension C:
21.00
Passenger Side Dimension A:
6.50
Passenger Side Dimension B:
14.25
Passenger Side Dimension C:
22.75
Collector Length:
4.00
