GM Stock Clutch Hydraulic Throwout Bearing

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Inside Diameter:
1.375
Outside Diameter:
2.875
Extended Length:
2.39
Compressed Length:
1.71
Outlet Fitting:
-4 AN
Travel:
.68
Notes
Will not work with RAM couplers.

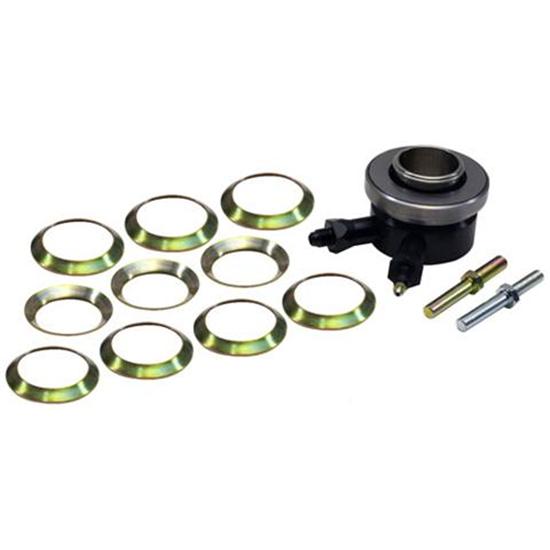

GM Stock Clutch Hydraulic Throwout Bearing
GM Stock Clutch Hydraulic Throwout Bearing
GM Stock Clutch Hydraulic Throwout Bearing

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

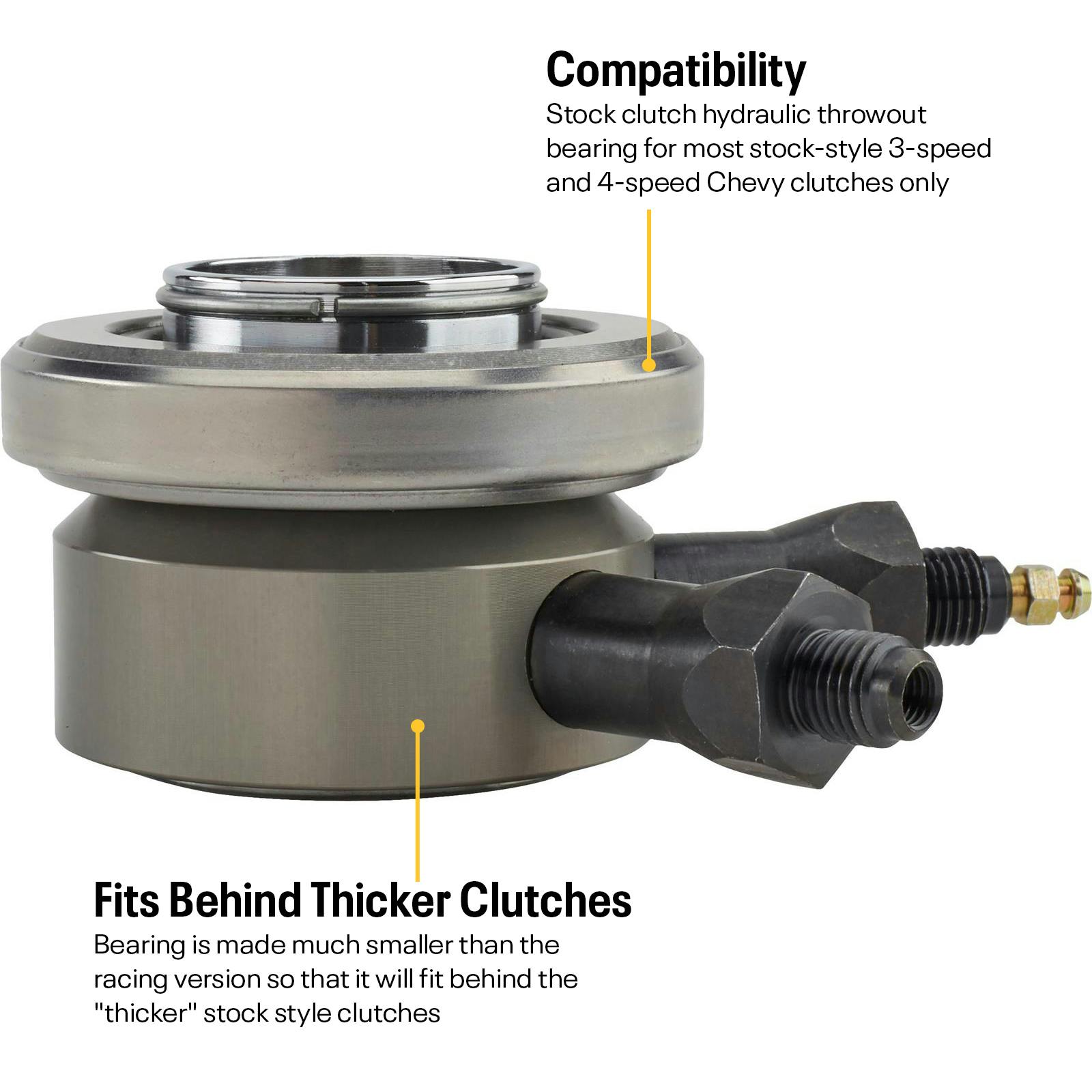

Stock clutch hydraulic throwout bearing for stock-style 3-speed and 4-speed Chevy clutches only. Install simply by replacing one bolt from the front of the transmission with one of the provided studs, then shim to fit. Use 3/4" bore master cylinder.

This bearing is made much smaller than the racing version so that it will fit behind the "thicker" stock style clutches. This redesigned new housing is much cleaner as it has no boss on the body. Plus, this design also has a retainer on it to prevent over extension and seal damage.

GM Stock Clutch Hydraulic Throwout Bearing Instructions (PDF)

Learn more about hydraulic release bearings and how to properly install them by reading our tech article. How to Install a Hydraulic Throwout Bearing.

Application

910-25610 Bearing typically used with:

  • All OEM and OEM replacement clutches
  • Jerico 2-speeds
  • Saginaw 3-speeds
  • Muncie 4-speeds
  • Saginaw 4-speeds
  • Borg-Warner 4-speeds
  • Jerico 4-speeds

WILL NOT work with:

  • B-W T-5 transmission without alteration of the bearing retainer (nose cone). (See GM T-5 bearing kit) Will not work with the Ford type T-5.
  • Ram Coupler
  • May not work with racing style clutches because of limited extension on our hydraulic throw out bearings. The travel on our 910-25610 is .688" inches.

Notes

  1. The fittings are AN 4 male for the "feed" and the "bleed" lines. Both fittings are tapped internally to accept the bleeder.
  2. To build your own external bleeder for this bearing, purchase (1) each of the following parts:
  •  835-2200063 (1/8"BLEEDER)
  • 617-4025 (AN4 to 1/8"female)
  • 91031842-4 (12" AN 4 line)

Item Details

Most GM 3-speed and 4-speed transmissions.

Customer Reviews

Rated 3.8 out of 5 by 15 reviewers.
RATING BREAKDOWN
15 reviews
5 Stars
8
4 Stars
2
3 Stars
1
2 Stars
2
1 Star
2
RECOMMEND THIS PRODUCT:

Jimmy
Verified Purchaser
Verified Reviewer
Willard Mo.

I'd buy or reccomend this bearing to a friend

July 02, 2015
Extreemly fast and resonable shipping
Pros:
  • Quite
  • A great product
  • Easy Pedal To Push
  • Quality is very good
  • No Linkage To Mess With
  • Easy To Install
Cons:
  • I Have Found No Cons
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Boneshaker8
Verified Reviewer
Dallas, TX

Not bad but, could be better.

June 30, 2015
I purchased one of these units about 2 years ago and it leaked from day one. And altho is wasn't a lot of leaking, it was making a mess under the car. After about 1,200 miles, I changed transmissions and decided to rebuild this unit so it wouldn't leak anymore. That rebuild lasted 1,100 miles and it blew the seals out of it leaving me stranded. I again rebuilt the unit and it poured out fluid immediately. Rebuilding this unit is a pain in the butt and the flimsy, thin o-rings don't do a good job of sealing. Since then, I have purchased a RAM 78125HD hydraulic throwout bearing and it is a FAR more substantial unit and much beefier o-rings and even a further travel distance .800 compared to .668 of this bearing. For the difference in price, do yourself a favor and go with the RAM clutches bearing.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

warnerracing
Verified Purchaser
Grand Marsh wi

Works great one bled out

May 26, 2015
Once it was bled out it works good
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Mr.Modify
Verified Purchaser
Verified Reviewer
Springfield Mo

great part

May 08, 2015
I purchased this product an rexived n speedy time every peice was included an it has worked out great for me ran 2 features since my purchase an has been great to me...ibtall was easy parts was great in suggest getting bthe bleeder line kit as well makes it all so much easier..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DKRacing
Verified Purchaser
Broken Arrow, OK, USA

Great Product

February 10, 2015
Easy to install and works great. Great Quality at a Great Price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

MartysSpeednSalvage
Auburn, WA, USA

Leaky

February 26, 2014
Installed on a Saginaw 3 speed Trans. Started leaking after 2 weeks. Just checked fluid before I'd take the car out.. Also had to modify my aluminum bell housing to keep from fraying the cable. Considering going back to external slave cylinder
Pros:
  • great smooth pedal feel
Cons:
  • leaks like the titanic
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Please note that Speedway Motors is not able to warranty a unit after 3 years from date of purchase, as this item was purchased on 1/28/2011. We however offer a replacement o-ring kit for this bearing under part number 910-25619. We apologize for any inconvenience this may have caused and would be happy to replace the unit if it was purchased within our 1 year warranty time frame. We hope this helps and if there are any questions, please contact us at 800.979.0122 for further assistance.
Easy Ed 14EE
Verified Purchaser
Peoria, Illinois

Life saver

July 27, 2012
Works great with my OEM style of racing clutch. The shims that are included are a life saver. Easy to install. Only two cons. First off the screw in stud was the wrong thread count. Had to buy a ball stud and weld an extension onto it. Secondly, you cannot bleed these outside of the bell housing. This must be done after everything is installed. Needs longer bleeders and fittings.
Pros:
  • Lightweight
  • Easy To Install
  • Durable
  • Provides Smooth Shifting
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

To build your own external bleeder for this bearing, purchase (1) each of the following parts: 835-2200063 (1/8"BLEEDER) and 617-4025 (AN4 to 1/8"female) and 91031842-4 (12" AN 4 line).
Dave
New York

Not good

June 22, 2012
The first one leaked out the front seal and was difficult to get blead but we got it to work and it stopped leaking,so a year latter when I had the trans out I installed another new one and it leaked worse than the first one, fluid runs out of the bellhousing as fast as you can pour it into the master. I've tried to get it to pump up and have used 1.5 quarts of fluid so far. Back to the garage to take it out again. The seals need a redesign.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Customer Service sent this customer two rebuild kits for the two throwout bearings that are leaking.
Matt
San Jose, CA

Good quality, works well

June 04, 2012
This one part replaced the stock throwout bearing, clutch fork, and heavy clunky linkage in my '75 Camaro street stock. Installation is easy, but pay close attention to setting the lash as described in the instructions. I would tend to set it a bit loose since it will tighten as the friction disc wears. I didn't even bleed mine, just pumped the pedal and slid the bearing back and forth on the bearing retainer and it came in all by itself. Now that's easy!
Pros:
  • Easy Install
  • Good Quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Wasted Youth Racing
Montesano, WA

Get the Remote Bleeder and only use DOT3

April 18, 2012
Use on my Street Stock, Only got one season out of it.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

19 questions : 19 answers

1 answers

Will this work with quatermaster 7.25 dual disk clutch?

kgould
July 11, 2014

Will this work with quatermaster 7.25 dual disk clutch?

Answers

July 11, 2014
EricM
No this will not work with a Quarter Master or any other brand 7.25" clutch. You will need throwout bearing 910710100 or 91025602 for your clutch.
1 answers

What modifications do I need to do to make this work on a GM T5? Description states "WILL NOT work with B-W T-5 transmission without alteration of the bearing retainer." What mods need to be performed on the retainer to make this work? Plan is to adapt a Buick 350 to a T5, want to use the BOP to chevy adapter plate (Speedway p/n 91628908) Car is a 1967 Buick Special Engine is a 1969 Buick 350 Trans is from a 1992 Pontiac Firebird Formula

Beans
Kennewick, WA, USA
February 16, 2014

What modifications do I need to do to make this work on a GM T5? Description states "WILL NOT work with B-W T-5 transmission without alteration of the bearing retainer." What mods need to be performed on the retainer to make this work? Plan is to adapt a Buick 350 to a T5, want to use the BOP to chevy adapter plate (Speedway p/n 91628908) Car is a 1967 Buick Special Engine is a 1969 Buick 350 Trans is from a 1992 Pontiac Firebird Formula

Answers

February 17, 2014
EricM
This throwout bearing has a 1.375" ID so the bearing retainer on the transmission may need to be machined smaller if you want to use this one. Also you should check for how much room you have for a throwout bearing between the fingers of the pressure plate and the flat surface of the bearing retainer on the transmission. This throwout bearing is 1.71" fully collapsed. I do offer a very similar bearing that is shorter at 1.52" fully collapsed that we use for GM T-5 transmissions which is part number 91025612. Other that the collapsed and extended lengths the two throwout bearings are very similar.
1 answers

Will this work with a 7/8" bore clutch master cylinder? I have a universal hydraulic clutch master cylinder setup but it has a 7/8" bore and I just want to make sure its not too big for a 3/4" bore slave.

Cedric
December 11, 2013

Will this work with a 7/8" bore clutch master cylinder? I have a universal hydraulic clutch master cylinder setup but it has a 7/8" bore and I just want to make sure its not too big for a 3/4" bore slave.

Answers

December 11, 2013
EricM
We recommend this throwout bearing to be used with a 3/4" bore master cylinder. You could use a 7/8" master cylinder with it but it will take more pedal effort by the driver.
1 answers

What kind of warranties are implied on this product? 6 months? one year? two year?

Anon
October 29, 2013

What kind of warranties are implied on this product? 6 months? one year? two year?

Answers

October 29, 2013
Jason
The GM stock clutch throwout bearing has a limited 6 month warranty. Because of the type of product this is, the warranty is affected by the use and/or abuse of the part.
1 answers

Can this be used with a 11/16 bore clutch master cylinder?

Sterlingk89
October 27, 2013

Can this be used with a 11/16 bore clutch master cylinder?

Answers

October 28, 2013
EricM
You could use this with an 11/16" master cylinder but you may not get the full amount of travel out of this bearing.
1 answers

Can I get replacement seals for this?

czracecars
September 04, 2013

Can I get replacement seals for this?

Answers

September 05, 2013
Jason
Speedway offers seal kit part #91025619 for this GM hydraulic throwout bearing.
1 answers

hi i need to know if this throwout bearing will work with a ram coupler thank you Will go on a 3 speed Saginaw

jones
August 19, 2013

hi i need to know if this throwout bearing will work with a ram coupler thank you Will go on a 3 speed Saginaw

Answers

August 20, 2013
Jason
Sorry, this GM stock hydraulic throwout bearing will not work with the Ram couplers.
1 answers

85 chevy pickup, inline 6, will this fit?

scepter46
Topeka, KS, USA
June 15, 2013

85 chevy pickup, inline 6, will this fit?

Answers

June 17, 2013
Jason
Hydraulic throw out bearing number 91025610 works with many transmissions but we do not have the truck transmission dimensions available. You will need to compare these dimensions to insure fit and also that you have the multi finger diaphragm pressure plate. Compressed Length - 1.710" Extended Length - 2.390" Inside Diameter - 1.375" (1 3/8") Travel - 0.680" Outside Diameter - 2.875" (2 7/8")
1 answers

I bought the Ram unit, doesnt fit! Is this shorter? i have 454 chevy with stock flywheel, bellhousing and BW trans, street type Ram diaphram clutch, hyd bearing wont fit in, .100 interference, (no freeplay) is this shorter?

HotRodDave
Detroit, MI, USA
January 15, 2013

I bought the Ram unit, doesnt fit! Is this shorter? i have 454 chevy with stock flywheel, bellhousing and BW trans, street type Ram diaphram clutch, hyd bearing wont fit in, .100 interference, (no freeplay) is this shorter?

Answers

January 16, 2013
Jason
Part #91025610 is 1.71" compressed length and 2.39" extended length. Ram bearing #60578125 is 1.75" compressed length and 2.50" extended length
1 answers

Your product writeup says "for stock-style 3 and 4-speed Chevy clutches only". Seems like it should work on any GM with a stock diaphram type clutch and bellhousung, with the transmissions listed. Will it be OK with an Olds 455, stock bell, 11" OEM clutch

Kit
Claremore, OK
February 05, 2012

Your product writeup says "for stock-style 3 and 4-speed Chevy clutches only". Seems like it should work on any GM with a stock diaphram type clutch and bellhousung, with the transmissions listed. Will it be OK with an Olds 455, stock bell, 11" OEM clutch

Answers

February 06, 2012
John
Part number 91025610 This works on most * All OEM and OEM replacement clutches * Jerico 2-speeds * Saginaw 3-speeds * Muncie 4-speeds * Saginaw 4-speeds * Borg-Warner 4-speeds * Jerico 4-speeds Input shaft dimension must fit in the I.D. of the throw out bearing of 1.375.
Page 1 of 2
