GM LS1 Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone

Specs
Material Type:
Steel
Sold in Quantity:
Set
Finish:
Natural
Tube O.D.:
1.63
Port Height:
1.69
Port Width:
1.69
Flange Thickness:
.31
Flange Style:
Round Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Header Tube Type:
Lake Style
Notes

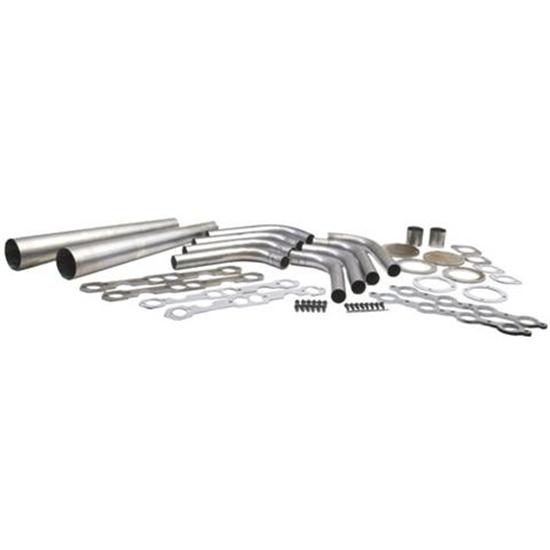

22" x 3.5" cones. Includes (8) primary tubes, gaskets, hardware, and flanges.
GM LS1 Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch ConeGM LS1 Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch ConeGM LS1 Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone
GM LS1 Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone

Click image to enlarge

Speeday Motors Logo
X
GM LS1 Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Vintage style street rods are hotter than ever, and nothing gives your fenderless rod an authentic dry lakes competition look like a set of lakester headers. These lake style header kits allow you to build your own weld up headers and tailor them to your vehicle. All tubing comes pre-bent. Tapered cones can be trimmed as needed. Lakester header kit includes parts to complete both sides.

  • 5/16" thick flanges
  • 16 ga. pre-bent tubing
  • Collector flanges w/ block-off plates
  • Flanges for connecting an under-car exhaust system (2" O.D.)
  • Gaskets & bolts

Item Details

1-5/8" primaries
30" x 3-1/2" cone
