GM Front Slip Yoke, 6 Inch

SAME DAY SHIPPING! Order within the next 12 hours 5 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Spline Count:
27
Spline End:
1-3/16"
Overall Length:
6.75
Shaft Diameter:
1.50
Shaft Length:
4.38
Notes
Accepts a 3-7/32" x 1-1/16" U-joint and is grooved for an "external" U-joint cap retaining clip.

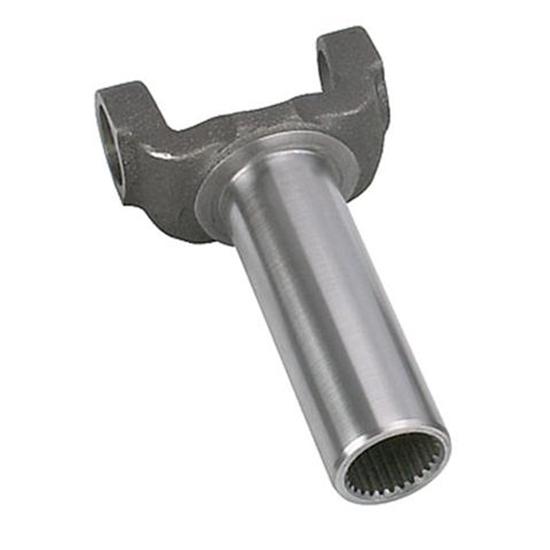

GM Front Slip Yoke, 6 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Longer slip yokes help compensate for extreme travel rear suspension set-ups or driveshaft lengths slightly shorter than needed. Works with 1310 series U-joints.

Fits over the output shaft of the following transmissions:

  • Common GM/Saginaw 3 & 4 speed transmissions with a 1-3/16" x 27 spline output shaft
  • Powerglide, T-350, 700R-4, 200R-4, and 4L60 automatic transmissions
  • Muncie M20/M21 and Borg Warner T-5 & T-56 27-spline manual transmissions

Item Details

For 3-7/32" x 1-1/16" U-joints

Notes

  1. The expressed measurement or length of the slip yoke is taken from the center of the U-joint to tip, not overall. This yoke measures 6" from the centerline of the U-joint to the front edge. Length of machined part of yoke is 4-3/8".

Customer Reviews

This product has no reviews.

Product Q&A

4 questions : 4 answers

1 answers

I recently purchased this product to connect to a 200r transmission. The slip yoke is too small, and also has a key way in it, although it's a 27 spline it doesn't connect to my transmission. I've never seen an auto slip yoke with a key way, is this appli

Woody
Bangor, Maine
June 20, 2011

I recently purchased this product to connect to a 200r transmission. The slip yoke is too small, and also has a key way in it, although it's a 27 spline it doesn't connect to my transmission. I've never seen an auto slip yoke with a key way, is this appli

Answers

June 22, 2011
John
Longer slip yokes help compensate for extreme travel rear suspension set-ups or driveshaft lengths slightly shorter than needed. They fit the common GM 3 & 4 speed transmissions with a 1-3/16" x 27 spline output shafts. Powerglide, T-350, 700R, 200R and 4L60 Transmission Slip yoke. Muncie M20 & M21, Saginaw, Borg Warner T-5 T-10 & T-56 27 spline manual transmissions. The yoke is equipped with one master spline for transmissions so equipped. Will still work properly with an output shaft with solid splines. Currently this is the only option we carry for the transmissions as listed. If you transmission does have the master spline make sure the yoke is properly lined up.
1 answers

will this fit a bert transmission

buck
alabama
June 14, 2011

will this fit a bert transmission

Answers

June 15, 2011
Jason
Yes, as long as you do not have the ball spline shaft on tranny.
1 answers

i need a yoke for th400,will this fit

garry
lindale,tx
January 01, 2011

i need a yoke for th400,will this fit

Answers

January 06, 2011
Waymon
Unfortunately the yoke that you are inquiring about part number 802-92420 is for a 1-3/16" x 27 spline output shaft and the Turbo Hydro 400 has a 32 spline output shaft.
1 answers

Will this fit Falcon Transmissions. Is it hardened?

Kyleo
Polson MT
June 18, 2015

Will this fit Falcon Transmissions. Is it hardened?

Answers

June 19, 2015
Eric
Expert
Yes this slip yoke will fit a Falcon transmission such as 8026010. No this slip yoke is not hardened.
