GM Disc/Drum Proportioning Valve for 3/8-24 Outlets

SAME DAY SHIPPING! Order within the next 9 hours and receive same day shipping

Specs
Centerline of Holes:
2.69
Material Type:
Brass
Overall Height:
2.00
Overall Width:
1.08
Overall Length:
5.13
Sold in Quantity:
Kit
Finish:
Natural
Outlet Fitting:
Bottom front/Top front are 3/8"-24 IFF (to font brakes), Rearmost port is 9/16"-18 IFF (to rear brakes).
Garage Sale:
No
Notes
Includes hard lines with fittings, hardware, bracket, and brake light switch. This is a combo valve (metering for front/proportioning for rear) into one valve. Residual valves NOT built in.
GM Disc/Drum Proportioning Valve for 3/8-24 Outlets
Product Video
GM Disc/Drum Proportioning Valve for 3/8-24 Outlets

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Details

Reviews

Q & A

What's in the Box

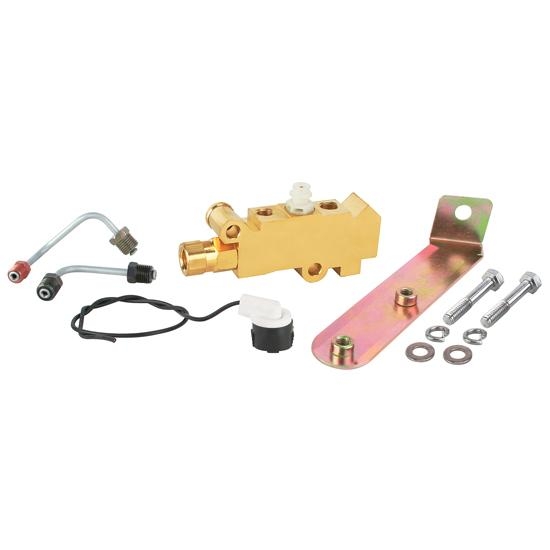

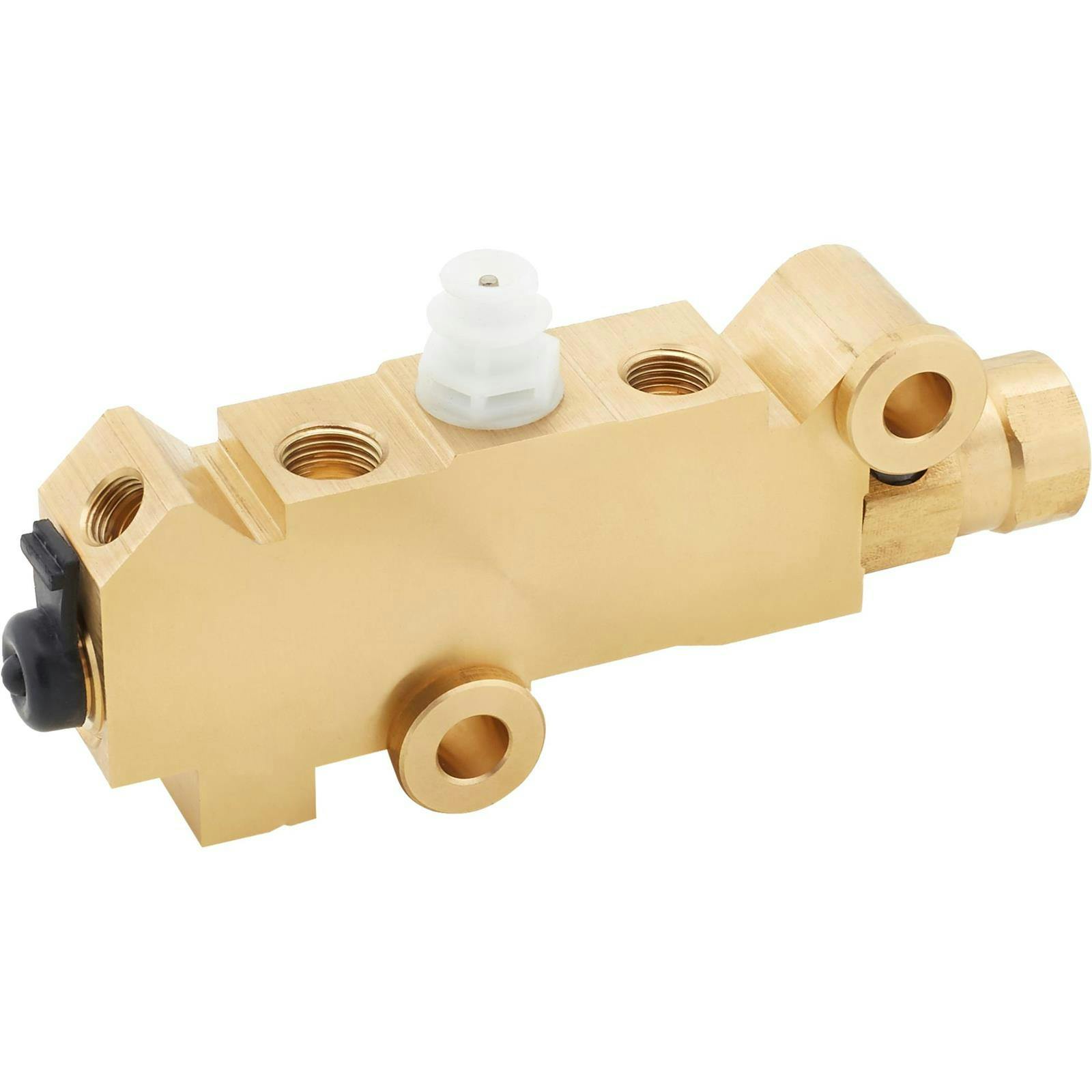

These proportioning valves are similar to what GM used on many cars in the 70's. They are non-adjustable and may require an adjustable valve in the rear brakes (if needed). Block incorporates metering (for front brakes) and proportioning (for rear brakes) into one unit. For use with front disc, rear drum brake systems.

Includes hard lines to connect to a master cylinder with 3/8"-24 outlets.

910-31364 Instructions (PDF)

Notes

Bottom Front Port: 3/8"-24 IFF threads - goes to one front brake
Top Front Port: 3/8"-24 IFF threads - goes to one front brake
Middle Top Port: 1/2"-20 IFF threads - comes from master cylinder
Rear Top Port: 7/16"-24 IFF threads - comes from the master cylinder
Rear Most Port: 9/16"-18 IFF threads - goes to rear brakes

Item Details

For M/C with 3/8"-24 outlets.
