GM Disc/Disc Proportioning Valve for 1/2-20, 9/16-18 Outlets

SAME DAY SHIPPING! Order within the next 12 hours 51 minutes and receive same day shipping

Specs
Centerline of Holes:
2.69
Material Type:
Brass
Overall Height:
2.00
Overall Width:
1.08
Overall Length:
5.13
Sold in Quantity:
Kit
Finish:
Natural
Outlet Fitting:
Bottom front/Top front are 3/8"-24 IFF (to font brakes), Rearmost port is 9/16"-18 IFF (to rear brakes).
Garage Sale:
No
Notes
Includes hard lines with fittings, hardware, bracket, and brake light switch.
GM Disc/Disc Proportioning Valve for 1/2-20, 9/16-18 Outlets
Product Video
GM Disc/Disc Proportioning Valve for 1/2-20, 9/16-18 Outlets

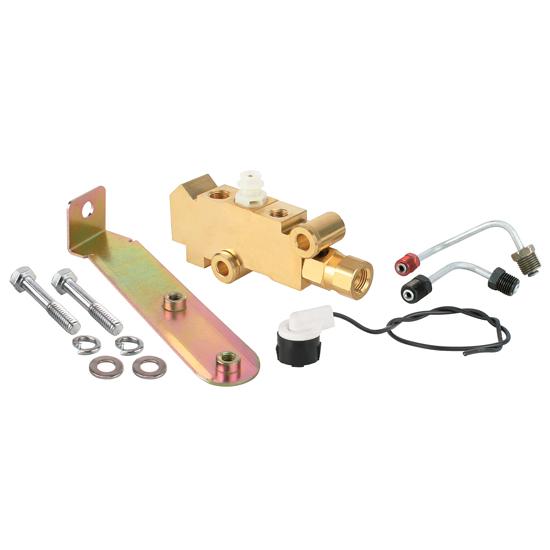

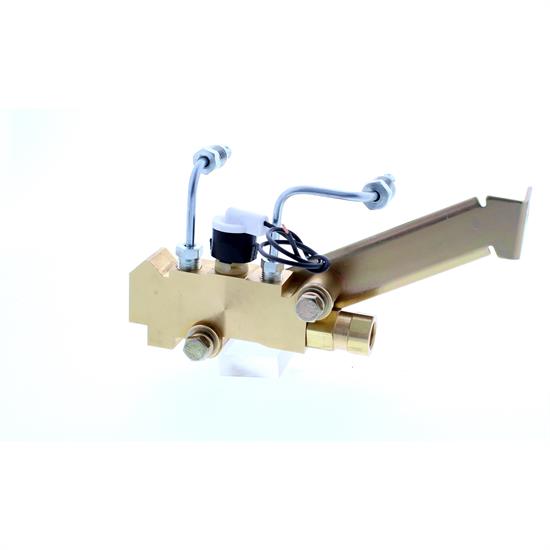

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Details

Reviews

Q & A

What's in the Box

These proportioning valves are similar to what GM used on many cars in the 70's. They are non-adjustable and may require an adjustable valve in the rear brakes (if needed). Block incorporates metering (for front brakes) and proportioning (for rear brakes) into one unit. For use with four-wheel disc brake systems.

Includes hard lines to connect to a master cylinder with 1/2"-20 and 9/16"-18 outlets.

910-31352 Instructions (PDF)

Notes

Bottom Front Port: 3/8"-24 IFF threads - goes to one front brake
Top Front Port: 3/8"-24 IFF threads - goes to one front brake
Middle Top Port: 1/2"-20 IFF threads - comes from master cylinder
Rear Top Port: 7/16"-24 IFF threads - comes from the master cylinder
Rear Most Port: 9/16"-18 IFF threads - goes to rear brakes
