Garage Sale - Pro WB791 Welded Bearing Shock

SAME DAY SHIPPING! Order within the next 3 hours 22 minutes and receive same day shipping

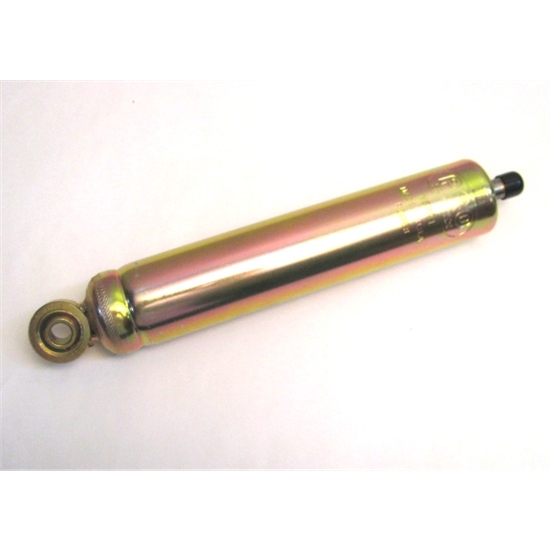

Garage Sale - Pro WB791 Welded Bearing Shock

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The newly redesigned PRO WB series steel shocks now feature hardened shafts with a removable rod end while still maintaining their superior, yet economical gas cell design.  A snap ring groove has also been added to allow the use of a coilover kit.  These are ideal for IMCA Modified-type race cars.

Compression Length: 13", Extension Length: 20"


This is Garage Sale priced because it does not include the shock end.

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Item Details

This is Garage Sale priced because it does not include the shock end.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What are the compression and rebound rates?

DDHH
March 11, 2013

What are the compression and rebound rates?

Answers

March 12, 2013
Jason
This is a Pro WB791 shock. 9 compression and 1 rebound, 7" stroke
