Stewart Warner 366LP-F Fuel Level Sender Installation Kits

Specs
Material Type:
Steel
Sold in Quantity:
Each
Hardware Included:
Yes
Overall Thickness:
.117
Inside Diameter:
1.625
Outside Diameter:
3.625
Notes
Standard hole spacing for the sending unit, which is 1.384" between 1 pair of holes and 1.25" on the remaining holes.
Stewart Warner 366LP-F Fuel Level Sender Installation Kits

Click image to enlarge

Details

Reviews

Q & A

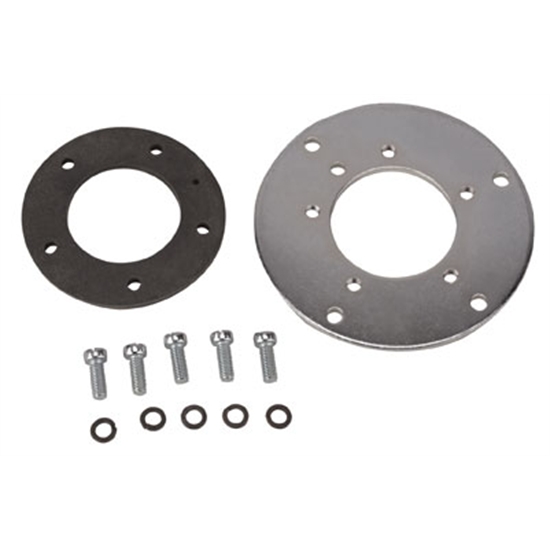

What's in the Box

Four mounting holes are used to attach the plate to your tank. Or it can be welded, soldered, or fiberglassed to your tank.

Includes new sending unit gasket and five screws and lock washers. Steel construction.

Customer Reviews

Rated 3.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

alanwoodieman
Verified Purchaser
sc

needs to be complete

June 03, 2014
It did not come with the 5 screws pictured and in my opion it has the wrong gasket. the gasket provided is the one for the sender to be attached to the mounting plate, not the needed one for the mounting plate to be attached to a tank with the four holes provided.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has refunded this customer for the item received. We apologize for any inconvenience this has caused.
Beaver
Bellevue, NE

Great!

January 22, 2010
When my original fuel sending unit started leaking gas, this made replacement a cinch. Even better than what I had before!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 4 answers

2 answers

how thick is the steel and are the holes threaded and what threads are used ?

manchester nh
September 19, 2011

how thick is the steel and are the holes threaded and what threads are used ?

Answers

September 20, 2011
Jason
This plate is .120" thick. There are 4 holes that are threaded 10-32. Adapter plate is 3 5/8" O.D. and has a center hole that is 1 5/8" I.D. There are 4 mounting holes that are used to attach the plate to your tank, or it can be welded, soldered, or fiberglassed to your tank. There is a new sending unit gasket and the 5 screws and lock washers included. Standard hole spacing for the sending unit, which is 1.384 between 1 pair of holes and 1.25 on the remaining and this is center to center measurement.
September 20, 2011
Jason
This plate is .120" thick. There are 5 holes that are threaded 10-32. Adapter plate is 3 5/8" O.D. and has a center hole that is 1 5/8" I.D. There are 4 mounting holes that are used to attach the plate to your tank, or it can be welded, soldered, or fiberglassed to your tank. There is a new sending unit gasket and the 5 screws and lock washers included. Standard hole spacing for the sending unit, which is 1.384 between 1 pair of holes and 1.25 on the remaining and this is center to center measurement
2 answers

Is this piece aluminum or steel?

July 21, 2011

Is this piece aluminum or steel?

Answers

June 04, 2014
alanwoodieman
steel
July 22, 2011
Jason
This piece is a plated steel
Page 1 of 1
