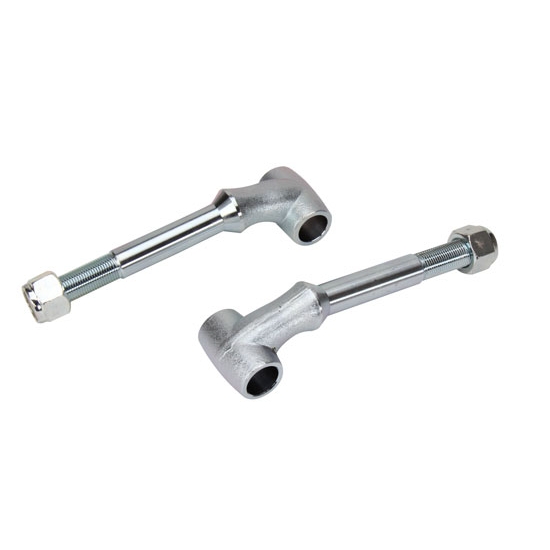

Axle Spring Perch, Plain Forged Steel

SAME DAY SHIPPING! Order within the next 9 hours 35 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
6.840
Overall Width:
1.750
Sold in Quantity:
Pair
Finish:
Natural
Inside Diameter:
0.750
Thread Length:
1.750
Under Head Length:
2.5
Thread Pitch:
5/8"-18
Center Hole to End of Shank:
6.275 Inches
Notes
Key slot for lower shock mount is not cut; this will have to be done after install. Includes nylock nuts.
Axle Spring Perch, Plain Forged Steel
Axle Spring Perch, Plain Forged Steel
Axle Spring Perch, Plain Forged Steel
Axle Spring Perch, Plain Forged Steel

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Works with 1928-34 Ford front ends with 1-3/4" wide cross spring. Extra long for lower shock mounts. Includes nylock nut.
  • 2-1/2" from top of threads to mid shoulder
  • 2-7/8" from top of threads to top of shoulder
  • Thread length is 1-7/8"
  • Distance from the top of the shoulder to the bottom of the threads is 4-3/4"

Leaf Spring Measuring Guide (Link)

Customer Reviews

Rated 4.5 out of 5 by 12 reviewers.
RATING BREAKDOWN
12 reviews
5 Stars
9
4 Stars
1
3 Stars
1
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

JayRohr62
Verified Purchaser

Axle Spring Perch

July 07, 2014
The perch mounts are very solid and the finish isn't all too bad either. The coating would have to be media blasted off if a person were to paint them but they fit as they should on my 1933 Ford 4" drop axle front end without any problems at all. I would suggest ordering the tapered nuts to go with them and locking pins which are oddly sold separately.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bigmoney
Verified Purchaser
Quimby, Iowa

Good fit and appears to be a quality man

May 22, 2014
I bought these perches to be used with my original 31 front axle and a new reverse eye leaf spring. This perch fit both of them very well and they have a nice look to them. They have a nickle finish on them I believe which would look good unpainted but I am going to blast and paint them with my frame anyhow.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

30ModelA
Verified Purchaser
AZ

Great

May 21, 2014
Made the front end look real clean. I should have done this long ago.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

30 Buford
Verified Purchaser
Beverly ,Ma.

Just what I needed

September 08, 2012
Got It fast ,in time for the weekend!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Model A Steve
Verified Purchaser
Little Egg Harbor, NJ

Good Value

September 02, 2012
Hot rod suspension. Zinc plating either must be removed or phosphate etched to apply paint.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Toecutter
Verified Purchaser
Denver

Forged Spring Perches

January 16, 2012
Perches are fine, but the nylock nut is useless. It needs to be tapered like OEM nut. Had to order nuts from other vendor. WHY?
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Troy
Verified Purchaser
Oregon

Consistantly great quality

November 27, 2011
These are great quality parts, that you just can't find out there.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jordan
Verified Purchaser
Milpitas, CA

Great Product!

November 13, 2010
Just what I needed!
Pros:
  • Just what I needed
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

48 Cornbinder
Verified Purchaser
Falling Waters WV

very nice

September 21, 2010
these are very nice, BUT, these need to be beveled on both ends. Only the top is beveled, they need to send 2 beveled washers with this, to make it complete. Other than that, they are nice.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

carcrazyjohn
Verified Purchaser
Trevose Pa

Perfect fit ,I have them on 2 cars ,

September 11, 2010
Ive used there products on 2 cars and the quality is very good .[...] Their prices are fair .
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

7 questions : 10 answers

1 answers

Why is there no key way in the spring perch to match the lower shock mount key way such as part # 910-36105 I purchased a front end kit back in early 2013. I am now working on shocks for my 1932 ford pickup. I called speedway back in mid 2013 when I installed the kit and asked about this issue. The tech told me you weld the two parts together. Ok I'm new to this back then, I dropped the issue. I have learned a lot sense then. It just doesn't make sense to have keyed and not the other.

Newbe
Toledo, OH, USA
January 14, 2015

Why is there no key way in the spring perch to match the lower shock mount key way such as part # 910-36105 I purchased a front end kit back in early 2013. I am now working on shocks for my 1932 ford pickup. I called speedway back in mid 2013 when I installed the kit and asked about this issue. The tech told me you weld the two parts together. Ok I'm new to this back then, I dropped the issue. I have learned a lot sense then. It just doesn't make sense to have keyed and not the other.

Answers

January 15, 2015
EricM
These spring perches do not always get used with those lower shock mounts, additionally the clocking of the keyway necessary for each application can vary. For those reason there is not a keyway cut into these perches. You can certainly have a machine shop cut the keyway into it for you. Many people will have that done when using with the lower shock mounts such as 91036105. The other option is to weld the shock mount like suggested previously.
2 answers

what is the bolt diameter?

Gus1953
February 20, 2014

what is the bolt diameter?

Answers

September 23, 2014
JayRohr62
5/8". I bought a set along with the shackles and they both go very well together.
February 20, 2014
EricM
The bolt has 5/8" fine thread.
1 answers

What grade hardness are these perch bolts? Grade 2, or Grade 5

FeBlock
October 31, 2012

What grade hardness are these perch bolts? Grade 2, or Grade 5

Answers

October 31, 2012
Jason
The perch bolts are not graded. These are forged from 4140 steel. The stainless version is made from 304 stainless
1 answers

does speedway sell a cone spacer to fit these, like the one sold with the flat top perches.

Jim
Aberdeen, SD
March 21, 2012

does speedway sell a cone spacer to fit these, like the one sold with the flat top perches.

Answers

March 22, 2012
John
Part number 5464110 is a steel cone spacer for the 5/8” threaded portion on the spring perches.
2 answers

Do these come with coned washers for the bottom?

Knoxville,Tn
September 27, 2011

Do these come with coned washers for the bottom?

Answers

May 23, 2014
Bigmoney
Buy the coned nuts. They work well.
September 29, 2011
Jason
Sorry, these do not come with any washers, nuts only
2 answers

what is the outside dia of the unthreaded area??

Scott
SW Mo
June 28, 2011

what is the outside dia of the unthreaded area??

Answers

September 23, 2014
JayRohr62
5/8".
June 29, 2011
QC
.6810
1 answers

will this work with my two inch wide leaf i think the book says this perch bolt is only inch and three quarter wide

stockton,ca
May 30, 2011

will this work with my two inch wide leaf i think the book says this perch bolt is only inch and three quarter wide

Answers

June 17, 2011
Chris
Trying to use this on a 2 inch wide spring will not work with these perches because the nylon bushing will not set flat to the perch and brake out the bushings. It doesn’t even work if putting a spacer on each side because the body of the perch needs to take the load this would steel let the shackle teeter and work on the bushings.
Page 1 of 1
