Forged Mono-Leaf Front Spring, 48 Inch Axle

Specs
Material Type:
Steel
Overall Width:
1.75
Sold in Quantity:
Each
Finish:
Natural
Number of Leafs:
1
Spring Height (Underside):
3.63
Length Eye to Eye:
31.00
Spring Eye I.D.:
0.75
Garage Sale:
No
Leaf Spring Eye Type:
Reverse Eye
Spring Location:
Front

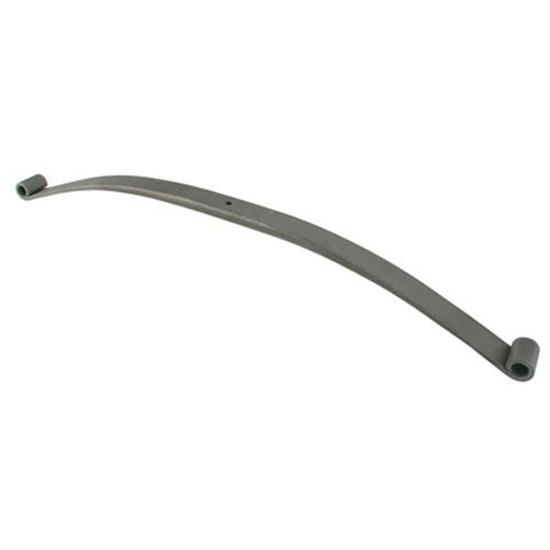

Forged Mono-Leaf Front Spring, 48 Inch Axle
Forged Mono-Leaf Front Spring, 48 Inch Axle
Forged Mono-Leaf Front Spring, 48 Inch Axle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

If you want to upgrade your solid axle front end without the hassle of welding and grinding, these mono-leaf springs may be your answer. They are simple to change out and you can adjust ride height by adding spacers above or below the spring. Varying thicknesses along the length and width of spring provide strength and flexibility for your vehicle's suspension.

  • Reverse eyes
  • 1-3/4" wide
  • Unpainted steel construction

Leaf Spring Measuring Guide (Link)

Item Details

31" Eye-to-Eye

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

What is the spring width? The "Specs" say it's 2.00" wide and the "Details" say it's 1.75" wide. Which one is correct?

1 answers
pinto72
March 24, 2014

What is the spring width? The "Specs" say it's 2.00" wide and the "Details" say it's 1.75" wide. Which one is correct?

Answers

March 25, 2014
EricM
This is a 1 3/4" wide spring and uses shackles number 91033323.

Saw previous answer, but what is actual spring rate for this spring? Have different project, need to know actual rate of spring.

1 answers
SAMRACING
January 06, 2014

Saw previous answer, but what is actual spring rate for this spring? Have different project, need to know actual rate of spring.

Answers

January 07, 2014
EricM
Sorry I do not have an exact spring rate of this spring.

Is this spring for use in a parallel spring axel, such as used in your "gasser axel kits". If so what is the spring rate or recomended car weight.

1 answers
Artful_Dodger
West Milford, NJ
January 18, 2011

Is this spring for use in a parallel spring axel, such as used in your "gasser axel kits". If so what is the spring rate or recomended car weight.

Answers

January 24, 2011
Waymon
The MONO-LEAF FORGED FRONT SPRING, 31 3/4" EYE-TO-EYE Item #: 91033041, is not for use in dual spring applications, it’s designed for buggy spring applications. It is manufactured for vehicles with a maximum total weight of 3000 lbs. or maximum front weight of 1400 lbs.
