Garage Sale - Forged Adjustable Spring Perches, Plain Stainless

SAME DAY SHIPPING! Order within the next 8 hours 26 minutes and receive same day shipping

Garage Sale - Forged Adjustable Spring Perches, Plain Stainless
Garage Sale - Forged Adjustable Spring Perches, Plain Stainless

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

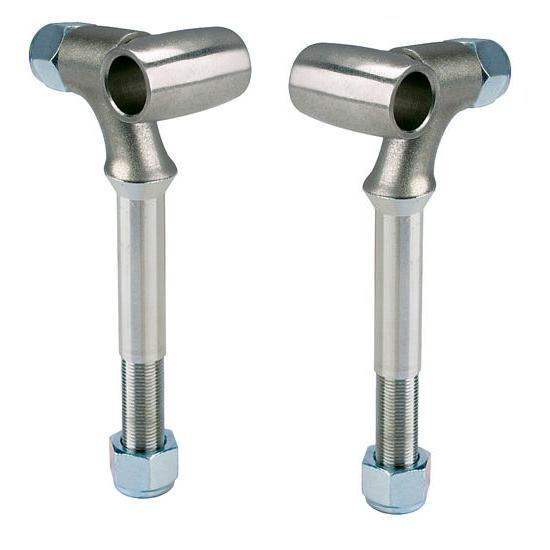

Eliminate alignment and binding problems on your straight axle front end! Adjustable spring perches allow you to fine-tune your front spring to get the best possible ride and handling characteristics. Perches are forged stainless steel construction and are long enough to work with lower shock mounts.

  • Adjustable pivot shank measures 2" long with 7/8" of threads
  • Use with 1-3/4" wide shackle/spring.
  • Includes nylock nuts.

These adjustable spring perches replicate the same spring length required as the non adjustable original style. Standard 48” axles with 36-3/8 or 36-1/2” perch centers will still require a 31-1/4” spring and the narrower 46” axles with 2” shorter perch centers will use the 29” spring.

Leaf Spring Measuring Guide (Link)



Clearance!!



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
