Ford Wilwood Front Brake & Steering Kits - 48 Inch Axle

SAME DAY SHIPPING! Order within the next 4 hours 21 minutes and receive same day shipping

Free Shipping Free Shipping
Ford Wilwood Front Brake & Steering Kits - 48 Inch Axle
Ford Wilwood Front Brake & Steering Kits - 48 Inch Axle
Ford Wilwood Front Brake & Steering Kits - 48 Inch Axle
Product Video
Ford Wilwood Front Brake & Steering Kits - 48 Inch Axle

Click image to enlarge

Watch the video below to learn more about Speedway Motors street rod spindles.

Details

Reviews

Q & A

What's in the Box

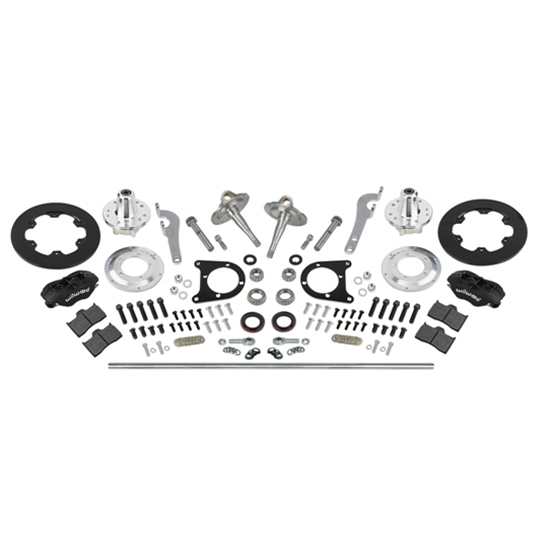

Speedways exclusive steering & brake kits for 1937-48 Ford spindles save you time and money by combining all necessary parts into one part number. Each kit includes premuim Wilwood brake components, spindles, flat steering arms, tie rod assembly and hardware. Hubs are drilled for both 4-1/2" and 4-3/4" bolt patterns. Must be used with a 15" or larger wheel. For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Kits can be used with either manual or power boost master cylinders.

Features these Wilwood components:

  • 4-piston Forged Billet Dynalite Calipers
  • 10-3/4" diameter x .38" thick solid steel rotors - black finish
  • Lightweight clear-anodized aluminum hubs

Choose:

  • Traditional or cross steering
  • Chrome or plain steering arms and tie rod cross bar

Traditional steering arm for left front wheel NOT included with kit.

Item Details

Fits 48" kingpin-to-kingpin axles.

Application

Cross Steering vs. Traditional Steering

Traditional steering provides an original, period look, but will only work in these applications:

  • Four bar setup with '68-'73 Mustang box
  • Split wishbone or hairpin radius rod with reversed Corvair or '48-'56 Ford Puckup steering box
  • Parallel Steering Set-Up Guide

Cross steering (using a Vega box) is the preferred method for nearly all cross spring, beam axle suspensions. Ford used this design from 1935-on.

  • Less bumpsteer
  • More comfortable steering column angle
  • Frees up foot pedal / bellhousing room
  • Cleaner vehicle profile
  • Cross Steering Guide

Notes

  1. Chevy-style spindles are specifically designed for use on tube axles. A shorter, thicker axle stub makes this a slightly stronger spindle ideal for use with heavier street rods. Ford-style spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle.
  2. For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums.
  3. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  4. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

doug
Verified Purchaser
easley south carolina

wilwood front brake and steering kit

July 27, 2015
on a t bucket im building
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

substitutions can i get this kit for a 46" rather a 48"?

dewittcustoms
Mesa, AZ, USA
December 28, 2013

substitutions can i get this kit for a 46" rather a 48"?

Answers

December 30, 2013
EricM
I do not have a kit set up with these components for a 46" axle. If you specify that you would like this kit for a 46" axle when ordering we can change the tie rod length so that it will be correct.
1 answers

Can this kit be ordered with deluxe king pins, and the Wilwood heavy duty rotor?

49Ratrap
MA
November 04, 2012

Can this kit be ordered with deluxe king pins, and the Wilwood heavy duty rotor?

Answers

November 05, 2012
Jason
Yes, we can make the substitutions to this kit. There will be a price upgrade for the different parts. Please contact a street rod tech with assistance in placing your order.
Page 1 of 1
