Ford Upper Steering Arm, Chrome, 7-3/4 Inch, 5/8 Hole

SAME DAY SHIPPING! Order within the next 2 hours 56 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Finish:
Chrome
Notes
7/16-20 threads to bolt to spindle

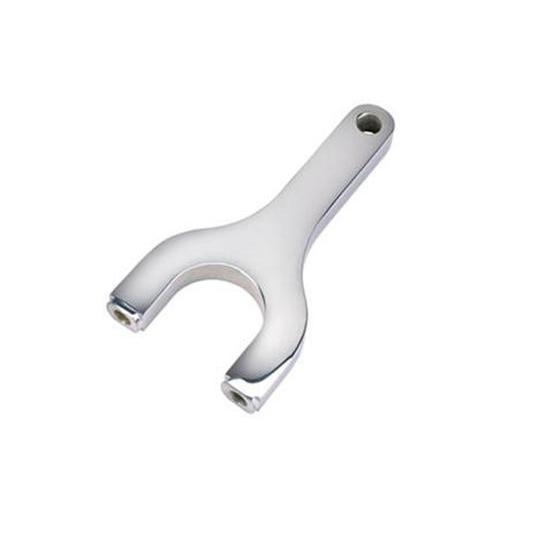

Ford Upper Steering Arm, Chrome, 7-3/4 Inch, 5/8 Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Flame cut steel upper steering arm for '37-'48 Ford spindles (with 3-3/8" mount centers). This design is available in 6-1/4" or 7-3/4" lengths. The longer 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse, and it also slows the steering rate for greater control. Tapped 5/8" end accepts spherical rod ends.

NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.

Steering Arm Ends Guide (GIF)

Parallel Steering Set-Up Guide (GIF)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

what size bolts mounts it to spindle just bought wilwood brakes frome you guys need to no if front spindle brackets bolts the longer ones

1 answers
papa
new bern nc
February 14, 2013

what size bolts mounts it to spindle just bought wilwood brakes frome you guys need to no if front spindle brackets bolts the longer ones

Answers

February 14, 2013
Jason
This Ford upper steering arm in tapped for 7/16-20 thread
Page 1 of 1
