Ford Upper Steering Arm, Chrome, 6-1/4 Inch, Tapered

Details

Reviews

Q & A

What's in the Box

Flame cut steel upper steering arm for '37-'48 Ford spindles (with 3-3/8" mount centers). This design is available in 6-1/4" or 7-3/4" lengths. The longer 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse, and it also slows the steering rate for greater control. Tapered end accepts 11/16" tie rod ends.

NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.

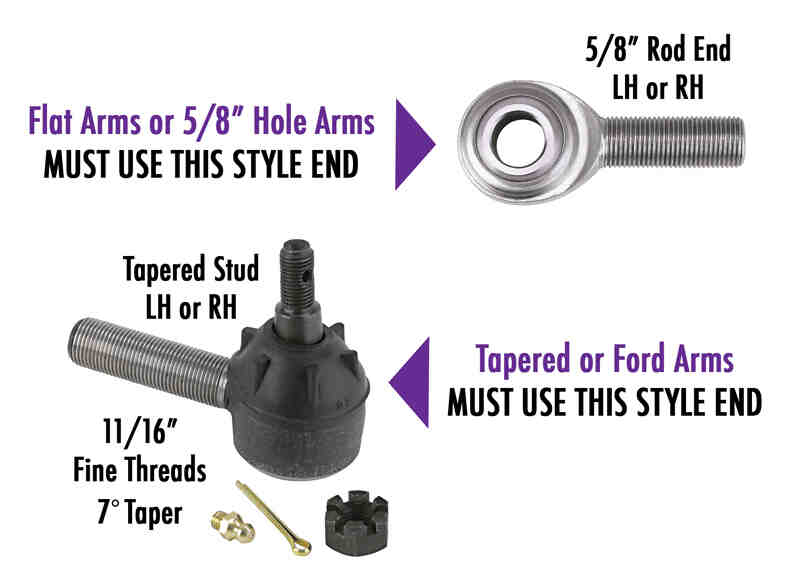

Steering Arm Ends Guide (GIF)

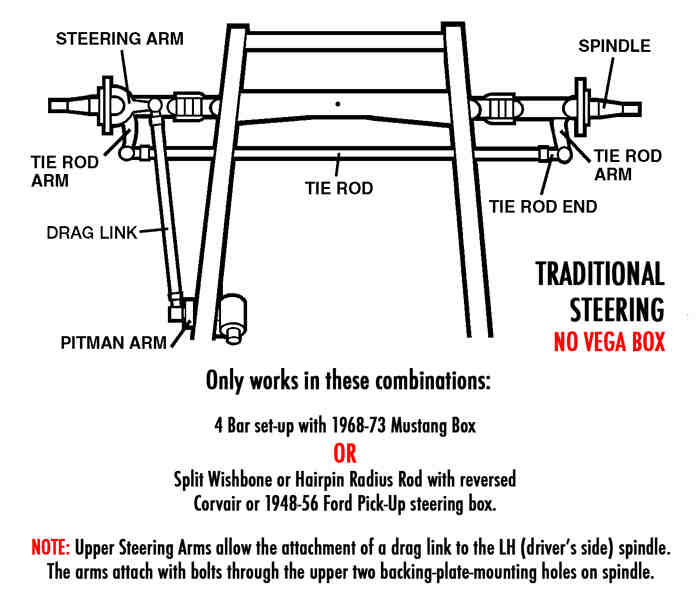

Parallel Steering Set-Up Guide (GIF)
