Ford Upper Steering Arm, Chrome, 6-1/4 Inch, 5/8 Hole

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Finish:
Chrome

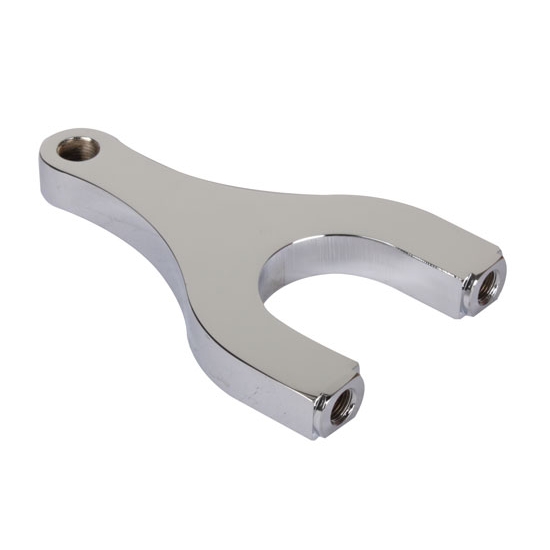

Ford Upper Steering Arm, Chrome, 6-1/4 Inch, 5/8 Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Flame cut steel upper steering arm for '37-'48 Ford spindles (with 3-3/8" mount centers). This design is available in 6-1/4" or 7-3/4" lengths. The longer 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse, and it also slows the steering rate for greater control. 5/8" end accepts spherical rod ends.

NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.

Steering Arm Ends Guide (GIF)

Parallel Steering Set-Up Guide (GIF)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Hot Rod Dana
Verified Purchaser
Raleigh, NC

Great Chrome and superb fit.

March 05, 2011
Bolted right up to my Ford hub. No tight thread problems.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
