Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel

Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel
Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel
Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

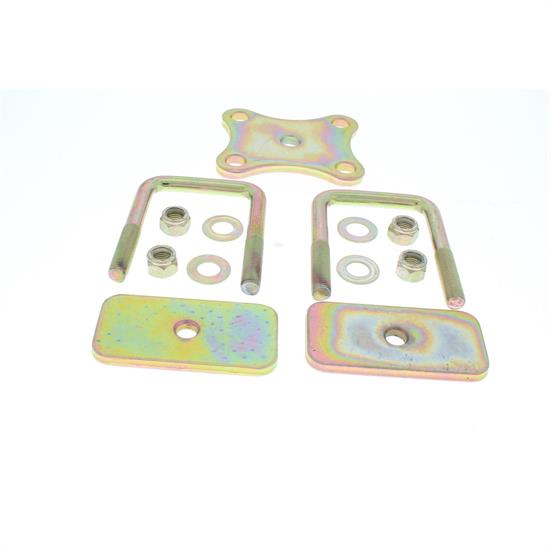

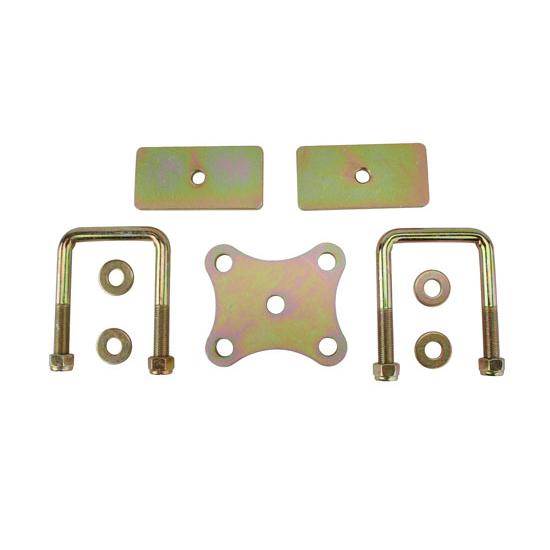

Use with original or reproduction Model "T" thru '34 Ford crossmembers. Includes two U-bolts with nuts, one spacer plate and one lower bracket.

Customer Reviews

Rated 4.6 out of 5 by 12 reviewers.
RATING BREAKDOWN
12 reviews
5 Stars
7
4 Stars
5
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dogridgekustoms
Belton, TX, USA
Product Rating

This mount and bolts work perfectly

October 03, 2013
I used this on a 1933 ford Pickup and it worked perfect.
Pros:
  • Worked great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

gus
Verified Purchaser
Acushnet, Ma.
Product Rating

nice pieces

September 27, 2012
Wish I could have bought only the lower bracket. Used to mount a 1-3/4" wide front cross spring to a fabricated front crossmember. Used the lower bracket 90 degrees to the way it's normally installed (to fit the 1-3/4" spring width) and the U bolts were too wide to use in this direction. Had to have custom U bolts made to fit this application. Didn't need the U bolts or spacer plates that came in the kit.
Pros:
  • Nicely Cut Lower Bracket
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rascal
Chippewa Falls, WI
Product Rating

Good Replacement for the OEM part

March 23, 2010
Worked very well with Speedways basic model 'A' suspension kit and crossmember.
Pros:
  • No modifications needed
  • Good OEM replacement
  • Bolt on and go
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

preachermaneddie
Verified Purchaser
Boyd TX
Product Rating

Fits good

October 15, 2011
Good kit chrome might have looked better on the ubolts.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Jerry
Verified Purchaser
Falling Waters WV
Product Rating

fit like a glove

October 10, 2010
This item was easy to use, built strong, and fit REAL good! Very nice
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dnaryl
Verified Purchaser
Port Charlotte, FL
Product Rating

Order a couple of extra spacers

August 27, 2010
Used this to mount my drop axle to a Speedway model A crossmember. Quality part with heavy duty hardware(can't build without it). I needed aproximately 5/8" worth of spacer to clear the bottom of the crossmember when clamping down the U bolts(I had material on hand)and the center hole in the base plate may need enlarged a bit for the springs center bolt.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hotrod man
Verified Purchaser
Tracy Ca
Product Rating

Perfest fit nice product

April 04, 2012
Very happy with the quality of this product
Pros:
  • Easy To Install
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Drewster1
Verified Purchaser
Twin Lakes, Wisconsin
Product Rating

Just as listed !

March 29, 2011
This U-bolt kit was used on my aftermarket Ford model A frame with a full set of leaf springs and worked perfect. If you only have a single leaf you will have to add a spacer but this kit is very sturdy !
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Russ Ellis aka The Minister of Sinister
Verified Purchaser
Phoenix AZ
Product Rating

U Bolt

January 13, 2011
dont forget to buy this for your front leaf spring setup. Its not included with the front axle setup.
Pros:
  • Improves Handling
  • Adjustable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Crosley
Verified Purchaser
PHX , AZ
Product Rating

Good kit to start with

February 20, 2011
Kit has enough parts to get going on my project
Pros:
  • Adjustable
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2
91633006

Product Q&A

2 questions : 2 answers

1 answers

does the spacer have to be used in kit or is to prevent wear thru frt crossmember?or for clearence issues?

rodmanv8
March 18, 2014

does the spacer have to be used in kit or is to prevent wear thru frt crossmember?or for clearence issues?

Answers

March 19, 2014
EricM
Use of the spacer/spacers in the U-bolt kit number 91633006 depends on the thickness of your spring. The clamp plate needs to secure the spring in the cross member and the kit includes two spacers. If you would use a mono leaf instead of a multi-leaf you will likely need more spacers or to fabricate the spacer in the thickness needed.
1 answers

Is the nut on the bottom of the spring pack to go thru the spacer plate ? Or does the plate sit up against the nut on the spring pack ?

Tim
York , PA.
August 02, 2011

Is the nut on the bottom of the spring pack to go thru the spacer plate ? Or does the plate sit up against the nut on the spring pack ?

Answers

August 03, 2011
John
The cinch bolt or thru bolt that holds the leaf spring together along with the nut should fit into the lower U bolt clamp plate. It may be necessary to enlarge the hole to match your spring bolt dimensions. This helps eliminate the strain on the upper head of the bolt in keeping the spring centered in the mount.
Page 1 of 1
