Ford Model A Open Drive Conversion Kit

Free Shipping Free Shipping
Ford Model A Open Drive Conversion Kit

Click image to enlarge

Details

Reviews

Q & A

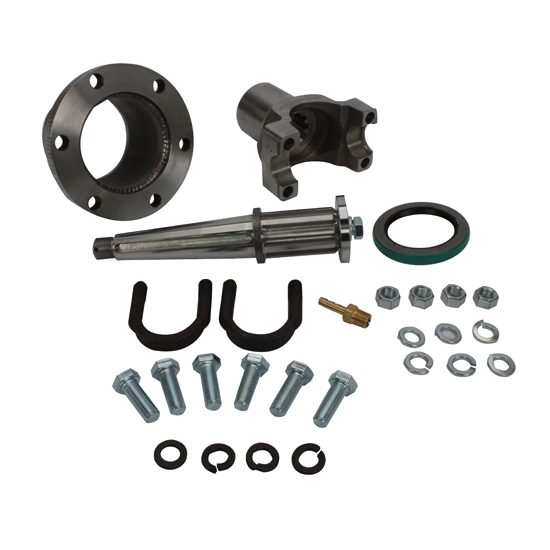

What's in the Box

If youre building a nostalgia rod and want to run a modern tranny with your torque tube banjo rear end - heres your answer! This open drive conversion allows you to keep your Model A or A style 1932 Ford rearend intact and run a normal driveshaft. This is a bolt-on kit that requires no machine work.

Item Details

'Model A and ''A'' Style 1932 Ford
(uses 1350 style U-joint)
Includes NEW pinion shaft'

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

HOW DOES THE SPEEDO CABLE ATTACH WITH THIS KIT? MY T-5 HAS A SPEED SENSOR OUTPUT, NOT A SPEEDO CABLE. DOES YOUR KIT HAVE THE ABILITY TO MOUNT THE ORIGINAL SPEEDO GEAR AT THE DIFFERENTIAL? IF WE HAVE ENOUGH REAL ESTATE ON THE PINION SHAFT, IT COULD BE ADDED, EH? WHAT ARE YOUR OPTIONS OR SUGGESTIONS?

PRYORCRAFT
Lake Wales, FL, USA
January 08, 2015

HOW DOES THE SPEEDO CABLE ATTACH WITH THIS KIT? MY T-5 HAS A SPEED SENSOR OUTPUT, NOT A SPEEDO CABLE. DOES YOUR KIT HAVE THE ABILITY TO MOUNT THE ORIGINAL SPEEDO GEAR AT THE DIFFERENTIAL? IF WE HAVE ENOUGH REAL ESTATE ON THE PINION SHAFT, IT COULD BE ADDED, EH? WHAT ARE YOUR OPTIONS OR SUGGESTIONS?

Answers

January 09, 2015
EricM
We apologize but do not have a kit to move the original style Speedometer drive to the input shaft. The only simple solution would be to change to an electronic speedometer.
1 answers

Does the kit come with a 6 spline yoke I am installing a T5 in my Model A that has a closed drive shaft coupled to a Quickchange that is 6 spline .

dustyp489
Maryland, USA
December 09, 2014

Does the kit come with a 6 spline yoke I am installing a T5 in my Model A that has a closed drive shaft coupled to a Quickchange that is 6 spline .

Answers

December 10, 2014
EricM
This open drive conversion for the Model A rear end comes with a new 10 spline pinion shaft along with a new 10 spline yoke.
1 answers

U-Joint? Hi, What type/number U-Joint does this couple with? Do you sell the yoke, etc. for it? Thanks

ChordSpecial
UK
September 07, 2013

U-Joint? Hi, What type/number U-Joint does this couple with? Do you sell the yoke, etc. for it? Thanks

Answers

September 09, 2013
Jason
The Ford Model A open drive conversion kit includes a yoke that accepts the 1350 series spicer u-joint that has a 3-5/8" width and 1-3/16" cap diameter.
1 answers

Model A open driveline kit. How do you drive in the pin and install the set screws, it appears that the hole in the yoke is behind the seal in the housing? Thanks, Ray

Antioch, CA.
May 27, 2011

Model A open driveline kit. How do you drive in the pin and install the set screws, it appears that the hole in the yoke is behind the seal in the housing? Thanks, Ray

Answers

June 02, 2011
John
The Model A open drive conversion actually comes with a new pinion shaft and on the end by the yoke it is retained by a bolt and large washer on the front of the yoke. The bolt goes into the center of the new pinion shaft and this particular kit does NOT make use of a pin and set screws.
1 answers

i would like more infomatoin for item number 919-1111, would like to see the differences of kits 919-1105,919-1106,919-1111

carthage, texas
May 23, 2011

i would like more infomatoin for item number 919-1111, would like to see the differences of kits 919-1105,919-1106,919-1111

Answers

May 25, 2011
John
We offer 3 different open drive conversions and our catalog has a misprint on the years covered. Part number 9191105 is for the 6 spline rear ends from ’35-48, 9191106 is for the 10 spline and also for ’35-48, and 9191111 is fro the Model A rear ends. If you enter part number 9191105 on our website and go to the second page by clicking on the photo or wording you can scroll down and see the pdf instruction file in purple print. Click on this for detailed instruction and assembly. The Model A kit also comes with a new 10 spline pinion to justify the increase in price.
