Flathead V8 to Ford C4 Transmission Basic Adapter Kit
Click image to enlarge
Please NOTE the following about this product:
- This item is sold as a kit.
Q & A
What's in the Box

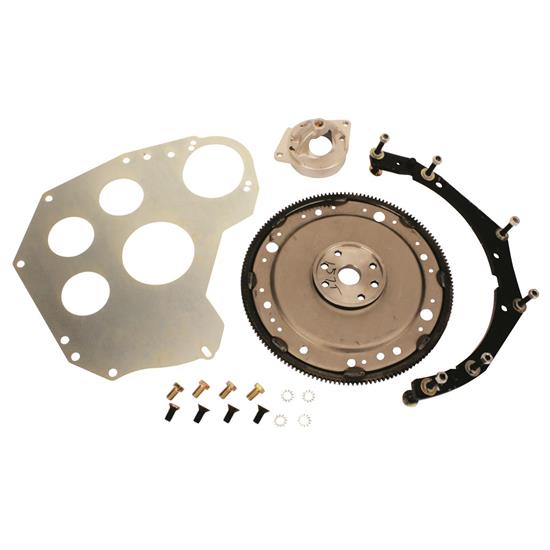

If you have access to your own transmission and parts or you wish to adapt an AOD, Ford C-4 or Ford C-6, this basic adapter set is what you need. Includes: starter nose cone, flexplate, bellhousing adapter and instructions. Choice of 157 or 164 flexplate. Use with 302-351W transmission. For Ford C4 and Ford C6 transmission application.
916-28901 Instructions (pdf)
This kit uses C-4 transmissions from 1966-76 Ford passenger cars, vans and pickups with 289-302-351W V-8's and 250 6-cylinder engines.
- If the bolt pattern on the front of the torque converter is a 10-1/2" circle, order the 157 tooth version.
- If the bolt pattern on the front of the torque converter measures 11-1/2", order the 164 tooth version.
Item DetailsBasic Hardware Only: Starter Nose Cone, Flexplate, Bellhousing Adapter, Instructions
