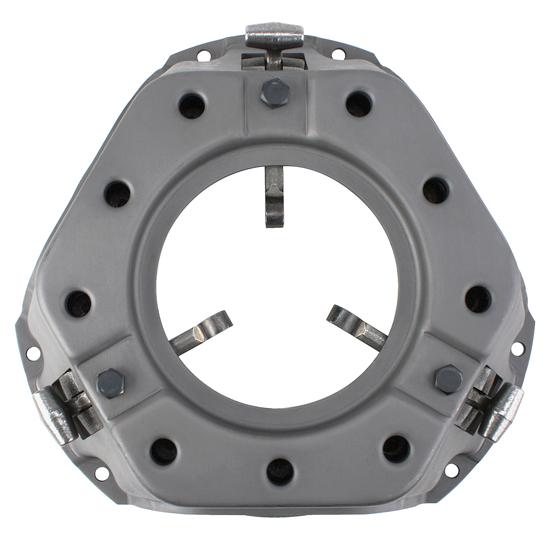

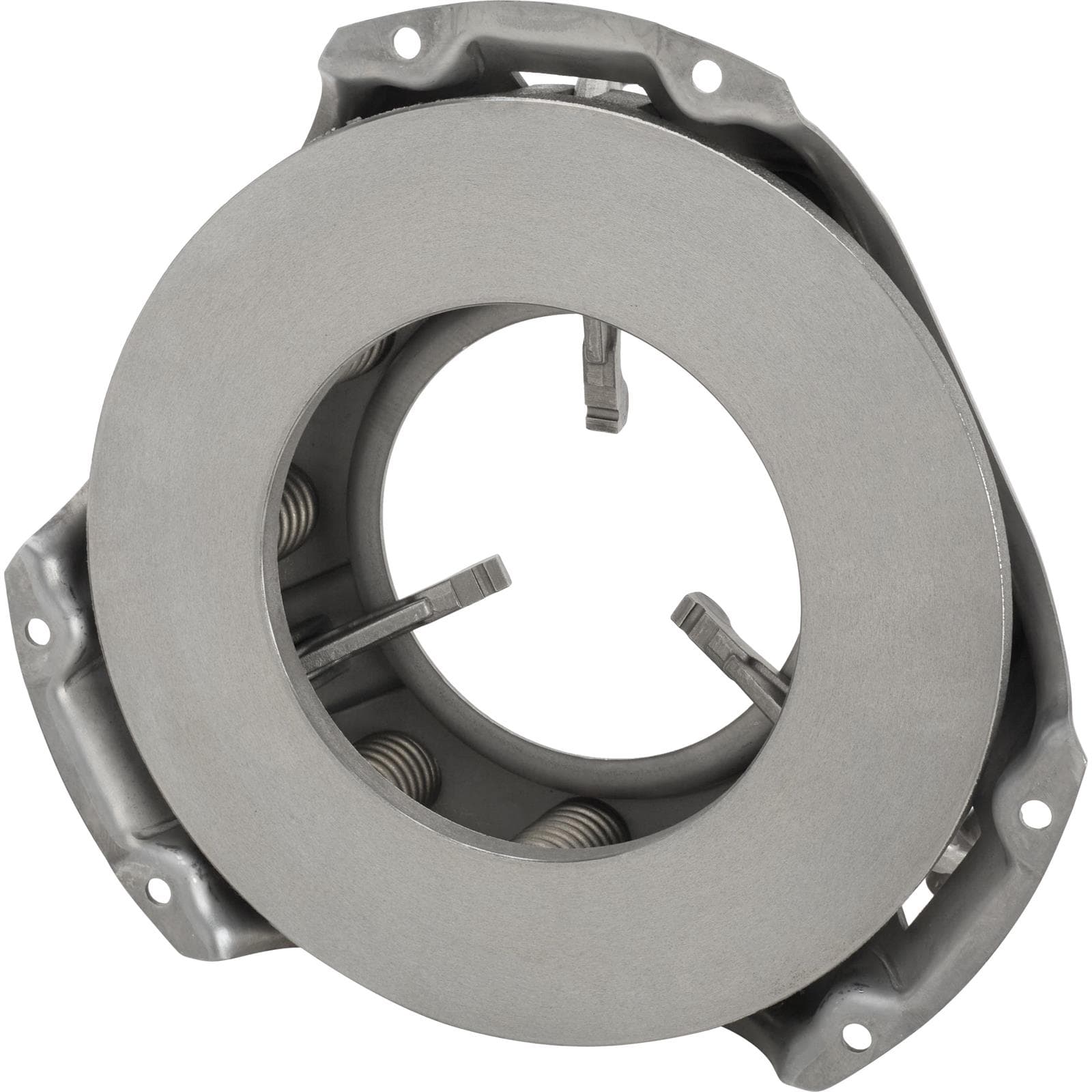

Flathead 10 Inch Long-Style Clutch Pressure Plate

Flathead 10 Inch Long-Style Clutch Pressure Plate
Flathead 10 Inch Long-Style Clutch Pressure Plate
Flathead 10 Inch Long-Style Clutch Pressure Plate

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

It's getting harder to find flathead Ford clutch components. We can help you resolve this problem with our 10" Long-style pressure plates for the flathead V8. This pressure plate has a 6 bolt pattern divided up into 3 groups of 2 with a 3.125” center-to-center.

Pressure plate bolt pattern must match your flywheel!

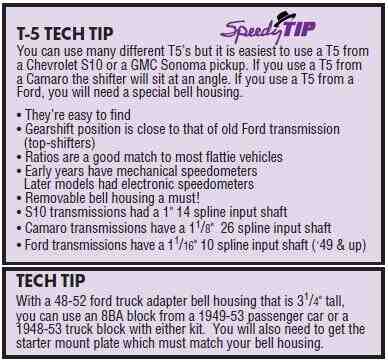

T-5 and Adapter Tech Tips (Link)

Notes

  1. Will not work with transmission adapters 916-28912, 916-28914, 560-5272, or 560-5174. This pressure plate has external counterweights that interfere with these adapters.
  2. If your application requires the use of a large pressure plate along with one of these adapters, use pressure plate 910-15635 as it has the same bolt pattern as the 10" pressure plate but does not make use of the external counterweights. You can use a 10" disc with the 10-1/2" pressure plate 910-15635.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

grampaken
Poulsbo, WA 98370, USA
Product Rating

Product is just as advertized.

November 03, 2014

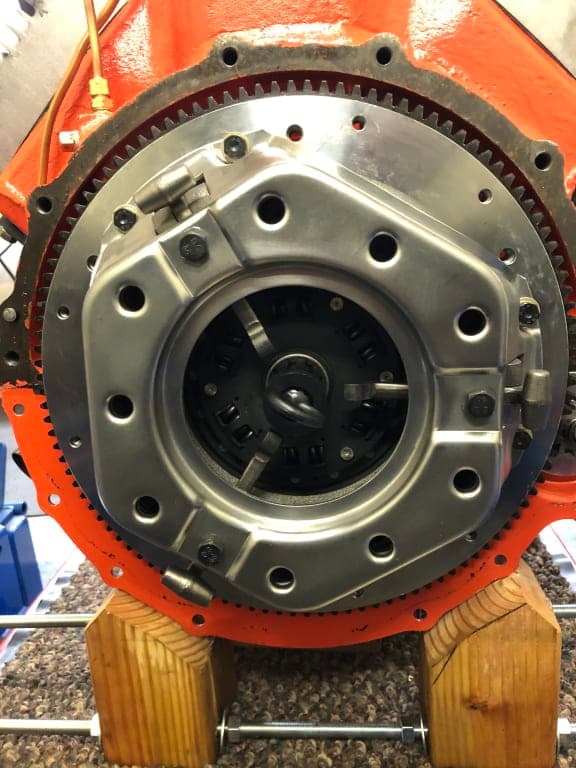

Worked out just fine for me. Already installed on the car.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91015657

Product Q&A

6 questions : 6 answers

1 answers

need Long style clutch for 63 Buick 215 V8 flywheel Will this pressure plate work? Here are the specs on the flywheel I have; 3 groups of two threaded holes spaced 3.125 apart. Flywheel is drilled for 5/16x 18 thread bolts and as near as I can tell it is a 11.5 bolt circle (5.75" from center of bolt hole to center of flywheel. I will need the 11/8 26 spline disc as well as I'm using a GM V8 T5 transmission.

OldnotSlow
Gilbert, AZ, USA
December 09, 2014

need Long style clutch for 63 Buick 215 V8 flywheel Will this pressure plate work? Here are the specs on the flywheel I have; 3 groups of two threaded holes spaced 3.125 apart. Flywheel is drilled for 5/16x 18 thread bolts and as near as I can tell it is a 11.5 bolt circle (5.75" from center of bolt hole to center of flywheel. I will need the 11/8 26 spline disc as well as I'm using a GM V8 T5 transmission.

Answers

December 10, 2014
EricM
The bolt circle listed for the 10 and 10 ½ pressure plates is 11 5/8” and will likely fit without issues. It is commonly referred to as a 11.5" bolt circle.
1 answers

Clutch size Can this be used with the 9 inch and 10 inch clutch?

Tinpit
Florida
September 23, 2014

Clutch size Can this be used with the 9 inch and 10 inch clutch?

Answers

September 24, 2014
EricM
Customers have used the 10” pressure plate with a 9” clutch disc but if ordering both we do also have the 9” long style pressure plate under number 91015651. The difference is of course is in the bolt circle and if you have the 10” pressure plate bolt circle we also have the matching clutch disc.
1 answers

50 Mercury Use Is this a direct replacement for 49-50 Mercury Borg Warner 3spd w/overdrive?

50MercMan
Evansdale, IA, USA
April 15, 2014

50 Mercury Use Is this a direct replacement for 49-50 Mercury Borg Warner 3spd w/overdrive?

Answers

April 15, 2014
EricM
Although it was called a 10” clutch like the Ford the Mercury measured just over 10” by up to 3/8”. Over the years many were replaced by the 10” many times without any problems. The style of pressure plate is correct but Mercury’s had 6 evenly spaced bolt holes instead of 3 sets of two. The Mercury had 11 5/8” bolt circle like the Chevy V8 and the pressure plate was 10 5/8”. Verification on your end is always suggested to avoid drilling your flywheel.
1 answers

will this work on a stock trans and motor 59ab

dave48
Louisiana, USA
November 14, 2013

will this work on a stock trans and motor 59ab

Answers

November 15, 2013
Jason
Most of the early clutches were nine inch with the exception of the heavier duty trucks. In that case they were 10 and even larger. To use with your original passenger car transmission the counter weight fingers may not clear the I.D. of the case and require modification to the transmission case and grinding off some of the counter weights. This has been done several times over the years by our customers.
1 answers

What is the spacing of the mounting locations to the flywheel? I have an 11" clutch/pressure plate in my block and I would like to replace it. Would the 10" or 10.5 " style work with my application?

Andy
Alton, NH
June 28, 2011

What is the spacing of the mounting locations to the flywheel? I have an 11" clutch/pressure plate in my block and I would like to replace it. Would the 10" or 10.5 " style work with my application?

Answers

June 29, 2011
John
Bolt patterns for flex plate mounting as follows: This flywheel is drilled to accept pressure plates with these bolt pattern: 3 groups of two with 3 1/8” center to center on 11 ½” bolt circle 3 groups of two with 3 3/8” center to center on 12 ½” bolt circle Also has 6 individual evenly spaced on 11 ¾” bolt circle
1 answers

Will this pressure plate fit my aluminum flywheel (Weber)? I currently have an 11" Weber pressure plate and it hits the Offy adapter I am using to install a T-10 4 speed transmission. I need to use a smaller pressure plate, but I don't know if this will f

Tom
Davenport, FL
August 31, 2011

Will this pressure plate fit my aluminum flywheel (Weber)? I currently have an 11" Weber pressure plate and it hits the Offy adapter I am using to install a T-10 4 speed transmission. I need to use a smaller pressure plate, but I don't know if this will f

Answers

September 01, 2011
Zach
Speedway part number 91015657. This 10" Long style pressure plate features a 6 bolt pattern with 3 groups of 2 bolts with 3.125" centers. As long as your flywheel has this pattern, it should work fine. It would be best to measure your pattern to see if it is the same. As far as manufacturer, this particular pressure plate is a Speedway brand part.
Page 1 of 1
