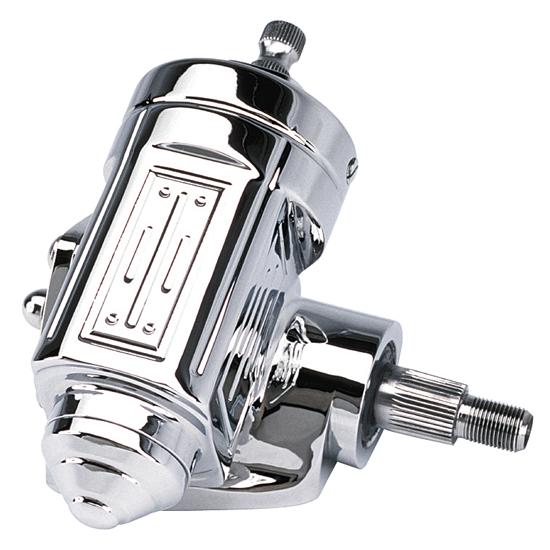

Flaming River FR1541TEC Chrome Tech-T Reversed Corvair Steering Box

Price:$969.99
Chrome Tech-T Reversed Corvair Box
Price:
$969.99
EA
In Stock
Item #:
91032152
Flaming River FR1541TEC Chrome Tech-T Reversed Corvair Steering Box
Click image to enlarge Click image to enlarge
No video at this time.


If you are building or updating a T-bucket that has a reversed Corvair steering box, a little chrome may be in order. These beautifully chromed works of art function just as good as they look. Both units feature a strong cast steel case, needle bearings, and precision gears with a 20:1 ratio.

  • All new components - not rebuilt
  • Manufactured from steel for improved strength
  • All NEW sealed needle bearing design
  • Longer life and less vibration vs. stock-style units
  • 20:1 steering ratio
  • 5/8"-36 spline input shaft



  • 91032152
    MFG. Part #
    FR1541TEC
    Ratio
    20:1
    Input Shaft Diameter
    0.630"
    Input Shaft Length
    0.940"
    Input Shaft Spline Count
    36
    Output Shaft Length
    0.880"
    Output Shaft Spline Count
    32 and 4 master
    Material Type
    Steel
    Finish
    Chrome
    Sold in Quantity
    Each
    Notes
    Output shaft splines are tapered.
