Firewall Mount Steering Shaft Bearing, 3/4 Inch Shaft Size

Specs
Centerline of Holes:
2.582
Material Type:
Aluminum
Overall Width:
.823
Sold in Quantity:
Each
Inside Diameter:
.750
Outside Diameter:
1.630
Notes
Max misalignment is 25 deg. Bearing assembly is flat on one side and measures approx 13/16" back to front.

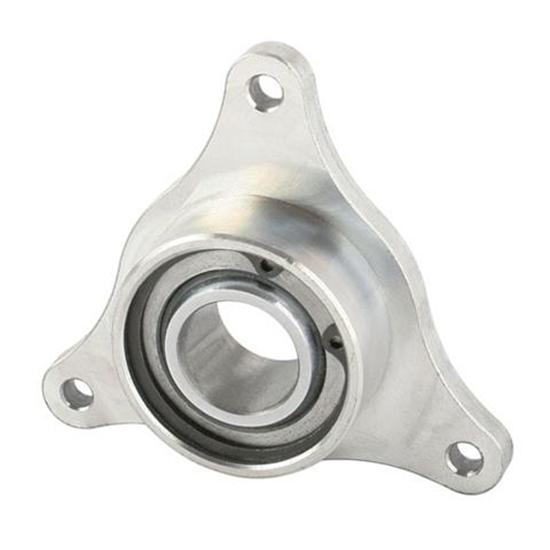

Firewall Mount Steering Shaft Bearing, 3/4 Inch Shaft Size

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These bearings have a .757" ID to slip over your 3/4" steering shaft and are in a lightweight aluminum bracket to allow easy installation of your firewall.

From center of bearing to center of mounting hole is 1.456" or approximately 1-1/2". This produces about a 3" mounting circle for the 3 mounting holes.

Customer Reviews

Rated 4.8 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
4
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Rockeye
Verified Purchaser
Bawlf Alberta Canada

Nice finish, smooth action

February 26, 2015
This steering shaft bearing is far superior to the firewall mount flanged bearing. Slightly pricier, but worth it.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Pauly
Verified Purchaser
Orleans, MA, USA

Quality construction, perfect for my app

April 20, 2013
Great product smooth rotation, easy to install. Three mounting holes makes for a more universal mount.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Greg the "Hammer"
Verified Purchaser
Klamath Falls, Oregon

Great if you need one

September 16, 2012
Makes a hard job much easier. Polishes up real nice.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jack
Verified Purchaser
Broadview Hts, Ohio

Good product but, didn't work for my use

September 21, 2011
none
Pros:
  • Improves Handling
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

J Lindz
Apple Valley, CA

Nice Product

February 08, 2010
See pros & cons...it is a quality product, I just think it would be nice to use larger bolts for addded strength. I was able to drill the holes for 1/4", but that is the max. I does make for an easy way the add support to the steering shaft and keeps fire wall sealed.
Pros:
  • Easy way to add support
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 3 answers

1 answers

if i buy the speedway colapseable steering column 22.5 32 inch can i use this bearing

snapper
Poquoson, VA, USA
July 04, 2013

if i buy the speedway colapseable steering column 22.5 32 inch can i use this bearing

Answers

July 05, 2013
Jason
No, this firewall mount bearing is 3/4" and the Speedway columns are 1.11". The column does come with a mounting rod end and currently Speedway does not offer a mount this size separate.
2 answers

What is the allowable misalignment?

Jim
North Florida
December 13, 2011

What is the allowable misalignment?

Answers

February 27, 2015
Rockeye
It's 25 degree's. I built a mount on inner firewall to adjust excessive misalignment.
December 13, 2011
Jason
Max misalignment is 25 deg. Bearing assembly is flat on one side and measures approx 13/16" back to front.
Page 1 of 1
